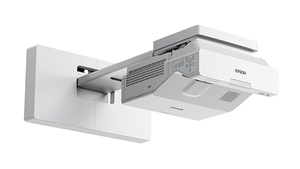

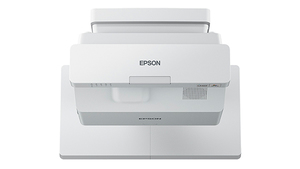

Epson EB-725W WXGA 3LCD Laser Projector

Product Models displayed on this website may be available in certain regions only.

Engage students with easy-to-read images up to 120" with this WXGA display.

Enhance engagement in today’s socially distanced classrooms with eye-catching, easy-to-read images using the EB-725W WXGA 3LCD ultra short-throw laser display. Designed to maximize classroom collaboration and productivity, this dynamic 4,000-lumen*3 laser display projects captivating 16:10 resolution images up to 120" diagonal with virtually no shadowing from nearly anywhere in the room. A flexible, easy-to-use solution, the EB-725W makes classroom projection more convenient than ever with built-in wireless, Instant On activation and a virtually maintenance-free with no lamps to replace for light source up to 20,000-hours*4.

  • 4,000 lumens of color and white brightness*3
  • WXGA 16:10; project up to up to 120"
  • 20,000-hour laser light source*4
  • Fast setup time with laser light source
  • Built-in wireless
  • Screen Mirroring



Our Price :

RM10,800.00

Revolutionary Laser Light Source
With laser light source, enjoy great cost savings with its extended maintenance cycle and without the need to replace the projector’s lamp.





Bright Images
With bright images of up to 4,000lm, it will allow clear image even in ambient light conditions from fluorescent lamps or sunlight from windows.



Ultra-Short Throw Advantages
Teachers and students will no longer be blinded by projection while presenting, and no shadows will be cast on the screen. This allows less disruption to lesson and more presentation space.




Large and Flexible Screen Size
Screen size of up to 120'' and flexible screen size for classroom of any size.


What's in the box:

Supplied Accessories
EB-725W / EB-735F
Power Cable: 1.8m x 1
Remote Control with 2xAA Battery

EB-725Wi / EB-735Fi (With Interactivity)
Power Cable: 1.8m x 1
Remote Control with 2xAA Battery
USB Cable for HCB: 5m x 1
Interactive Pens: 2 pens with 2xAA Battery
Pen Stand: 1
Pen Tip (Felt): 4
Pen Tip (Teflon): 2
Finger Touch Unit: 1*
Corner Marker for Automatic Geometry Adjustment: 4
Magnet for Corner Marker: 4

Optional Accessories
Air Filter: ELPAF60
USB Extension Cable: ELPKC31
Remote Control Cable Set**: ELPKC28 (10m x 2)
Setting Plate: ELPMB62
Table Projection Mount: ELPMB29
Ceiling Mount: ELPMB23
Wall Mount for FTU**: ELPMB63
Wireless LAN unit: ELPAP11
Finger Touch Unit***: ELPFT01
Easy Interactive Pen 1**: ELPPN05A
Easy Interactive Pen 2**: ELPPN05B
Replacement Hard Pen Tips**: ELPPS03
Replacement Soft Pen Tips**: ELPPS04

* Only available for EB-735Fi only.
** EB-725Wi & EB-735Fi only. Refer to compatibility list.
*** Optional only for EB-725Wi.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Brightness:


White Light Output (Normal / Eco): 4,000lm / 2,800lm*3Colour Light Output: 4,000lm / 2,800lm*3

Connectivity:


Network: Wired LAN: RJ45 x 1 (100Mbps)
Screen Mirroring (Built-in)
Wireless: Optional (Using ELPAP11)Analog Input: Composite: RCA x 1 (Yellow)
D-Sub 15Pin: 2 (Blue, Black)Digital Input: HDMI: 3 (HDCP2.3)Output Terminal: D-Sub 15Pin: 1 (Black) (in common with Computer 2)Audio Input: Stereo Mini Jack: 3Audio Output: Stereo Mini Jack: 1Mic I/O: Stereo Mini x 1Control I/O: RS-232C: D-Sub 9pin x 1Others: USB Type A: 2 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Contrast Ratio:


Contrast Ratio: Over 2,500,000 : 1

Screen Size (Projected Distance):


Screen Size (Projected Distance): 65” – 120” [38.5 – 72.5 cm] @ 16:10
64” – 116” [36.9 – 69.2 cm] @ 16:9

Geometric Correction:


Vertical/Horizontal Keystone: ±3° / ±3°Quick Corner: Yes (Manual)

Operating Temperature:


Single Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [41 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10.000 ft): 0 - 35 °C [41 - 95 °F] ; 20%-80% Humidity, No CondensationMulti-projection Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [41 °F - 95 °F ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10,000 ft): 0 - 30 °C [41 - 86 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:


Start-Up Period: Less than 8 seconds, Warm-up Period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 16W Monoaural

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 356 x 133 mm x 395 mm

Weight:


Weight: 5.7kg

Air Filter:


Type: Electrostatic FilterMaintenance Cycle: 12,000 hours *1

Fan Noise:


Fan Noise (Normal / Eco): 36dB / 26dB

Wireless LAN – Built-In:


Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)Wireless LAN Security: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Screen Mirroring – Built-In:


Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2Access Point: (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)

Power:


Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Direct Power On / Off:


Direct Power On / Off: Yes

Specifications of Main Parts:


LCD: Size: 0.59” (C2Fine)
Resolution: WXGA (1280 x 800)Lightsource: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsProjection Lens: Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 3.7mm
Zoom Ratio: 1.0 – 1.35 (Digital Zoom)
Throw Ratio: 0.28 – 0.37 (Wide to Tele)

Notes:

*1 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.

*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer

*3 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*4 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
