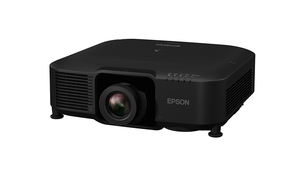

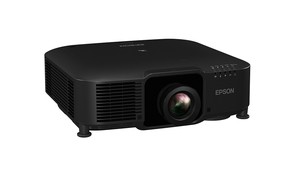

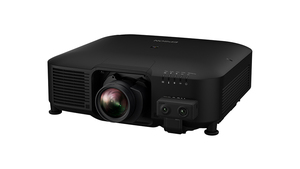

EB-PU2010B WUXGA 3LCD Laser Projector with 4K Enhancement

Premium, compact large venue laser projector with 4K Enhancement1.

A sleek powerful projector boosting 10,000 lumens of equal colour and white brightness2 and is designed to be virtually maintenance-free3.

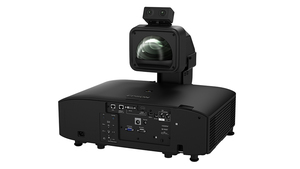

This compact and versatile high brightness projector with optional interchangable lens including a zero-offset ultra short throw lens allows offers flexibility in a wide variety of environments. With its beyond Full HD WUXGA resolution and 4K Enhancement Technology1 (1920 x 1200 x 2), expect stunning, crystal-clear, true to life images with exceptional image detail and clarity. With the Built-in NFC function4, diagnostics and installations is made easier using the Epson Projector Config Tool, reducing the time spent even for the setting up of multiple projectors. The optional external camera module allows access to powerful automated tools including auto color calibration5, screen matching of multiple projectors6, Geometry Correction Assist for Tiling for Edge Blending7, and the Geometry Correction Assist for Stacking function6.

      • 10,000 lumens Colour and White brightness2
      • 4K Enhancement Technology1with HDR support
      • SDI input and output connectivity
      • Laser light source — up to 20,000 hours3 of use

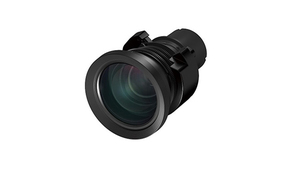

      • Compatible with wide range of up to 10 optional powered lenses
      • Advanced installation tools : Free software tools and optional ELPEC01 external camera module


      Download CAD Drawing


Revolutionary 4 in 1 Laser Package
Equipped with this new laser package, EB-PU2010B delivers 10,000 lumens of equal white and colour brightness in a compact, lightweight chassis. This allows for easier and more discreet installations as well as increased transportability.

Borderless Multi Projection
With a wide variety of functions available for multi-projector installations, you can adjust the brightness, colour and position of overlapping areas for seamless, beautiful displays with the PU-series of projectors.

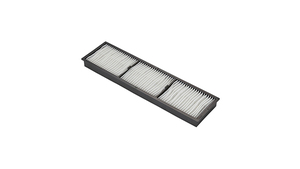

Optional ELPAF63 External Air Filter
Coupled with the external air filter, the PU-series will reduce the maintenance intervals even in high dust environments such as shopping malls and exhibitions.

Benefits of Geometry Correction Assist for Stacking with Optional ELPEC01 camera
The ELPEC01’s flexible mounting positions allow for quick adjustments to the camera, as well as usage with ultra short throw lens, thanks to its small size. When used together with the Epson Professional Tool software, both setup and usage for multiple projectors will be a fuss-free process.

Epson Projector Config Tool for Easy Set Up
Using NFC wireless communications technology to change projector settings and check equipment information, the Epson Projector Config Tool is an app that allows you to configure network and projection settings in advance, even when the projector is switched off. Allowing management across your fleet of projectors, this tool helps to reduce time and effort required, increasing efficiency.

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)


White Light Output (Normal/Eco): 10,000lm / 7,000lmColour Light Output: 10,000 lmLight Output (Center): 10,300 lm8


Network: Wired LAN: RJ45 x 1 (100Mbps)
Optional Wireless: ELPAP11Analog Input: D-Sub 15pin: 1Digital Input: HDMI: 1 (HDCP 2.3)
DVI-D: 1 (HDCP 1.4)
HDBaseT: 1 (HDCP 2.3)
SDI (SD/HD/3G-SDI): BNC x 1Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1
Remote: Stereo Mini x 1Digital Output: SDI (SD/HD/3G-SDI): BNC x 1Others: USB Type A: 2 (Port1 for 5V/2A Power Supply, Grackle, SMF1, Firmware Update, Copy OSD Settings, Content Playback ; Port2 for 5V/900mA Power Supply, Wireless LAN, Firmware Update, Copy OSD Settings, Content Playback)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)

Projection Lens:

Type: Power Zoom, Power FocusFocal Length: 36 – 57.4 mmZoom Ratio: 1 - 1.6F-number: 1.8 – 2.3Lens Shift: Vertical: ±60% (Powered)
Horizontal: ±18% (Powered)Throw Ratio Range: 1.57 – 2.56 (Wide – Tele)

Contrast Ratio:

Contrast Ratio: Over 5,000,000:1

Screen Size (Projected Distance):

Zoom : Wide: 60” – 1,000” [1.99 – 34.43 m]Zoom : Tele: 60” – 1,000” [3.26 - 55.63 m]

Geometric Correction:

Vertical/Horizontal Keystone: ±45º / ±30ºProjection Orientation: 360º Free

Operating Temperature:

Operating Temperature: Low Altitude (0-2,286m/7,500ft): 0-50 °C <32°F - 122°F>
High Altitude (Over 2,286m / 7,500ft): 0 - 45°C <32°F - 113°F>
20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period: Less than 7 seconds (Epson Logo); Warm-up Period: 30 secQuick Start-Up: Less than 7 seconds (Display)

Cool Down Period:

Cool Down Period: Instant Off

Direct Power On/Off:

Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 545 x 164 x 436 mm


Weight: Approx.16.8kg

Air Filter:

Type: Electrostatic FilterMaintenance Cycle: 20,000 hours (Normal) / 30,000 hours (Extended)*10

Fan Noise:

Fan Noise (Normal / Eco): 37dB / 34dB / 30dB

Wireless Specifications (Optional Wireless LAN):

Supported Speed for Each Mode: Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps*9, IEEE 802.11g (2.4GHz): 54 Mbps*9, IEEE 802.11n (2.4GHz): 72.2 Mbps*9, IEEE 802.11a (5GHz): 54 Mbps*9, IEEE 802.11n (5GHz): 150 Mbps*9

Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps*9, IEEE 802.11n (2.4GHz): 72.2 Mbps*9, IEEE 802.11a (5GHz): 54 Mbps*9, IEEE 802.11n (5GHz): 150 Mbps*9Supported Mode: Infrastructure, Access Point (Wi-Fi Direct)Supported Security Type: Infrastructure: Open, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Specifications of Main Parts:

LCD: 1.0” (C2 Fine)Lightsource: Type: Laser Diode
Life: 20,000 hours (Normal) / 30,000 hours (Extended)Aspect Ratio: 16:10Resolution: WUXGA (Support 4K Enhancement)

Power Supply Voltage:

Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Power Consumption (220 - 240V):

Laser Diode ON (Normal / Extended): 535 W / 452 WStand By: Normal / Eco: 2.0 W / 0.5 W


Please refer to brochure for exact product images/specifications. Product images displayed on the website are for illustration purpose and may not be referring to the same model. Some models may be available in certain regions only.

1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.

Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

4 NFC enabled device required.

5 Requires Epson ELPEC01 external camera.

6 Requires an Epson ELPEC01 external camera for each projector.

7 Requires an Epson ELPEC01 external camera for each projector and Epson Projector Professional Tool app.

8 This light output value is measured at the center of the screen as a reference value which is equivalent to lumens. There is no official standard for Light Output (Center) measurements and this measurement is made based on the method set by Epson. Please note, each manufacturer measures Light Output (Center) independently according to their own methods and therefore it is recommended to refer to Color Light Output measured in accordance with IDMS 15.4 and White Light Output measured in accordance with ISO 21118 when selecting and comparing projectors.

9 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environment conditions.

10 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.
