Epson EB-L260F Full HD Standard-Throw Laser Projector with Built-in Wireless

Keep students engaged wherever they are in the classroom with bright, large images.

Bring immersive displays to the classroom, conference room and beyond with the EB-L260F lamp-free laser display. Ideal for displaying engaging lesson content, impactful presentations, eye-catching signage and more, the EB-L260F offers stunning 1080p image quality and 4,600 lumens of color and white brightness1. Designed for convenience, it features flexible aspect ratios, an image size that’s up to 16x larger than a 75" flat panel display and a 20,000-hour, virtually maintenance-free laser light source2 for simple and reliable performance. A feature-packed solution, the EB-L260F offers wireless connectivity with casting capability3 for convenient content sharing—and includes free downloadable Epson Projector Content Manager software4 for dynamic digital signage design.

  • 4,600 lumens of colour and white brightness1
  • 1080p resolution at an exceptional value
  • No lamps to replace ever with solid-state laser light source
  • Image size up to 310” diagonal for 16:9 aspect. Widescreen aspect ratio up to 16:6 and 21:9.
  • Wireless connectivity with screen mirroring capability3



Where to Buy

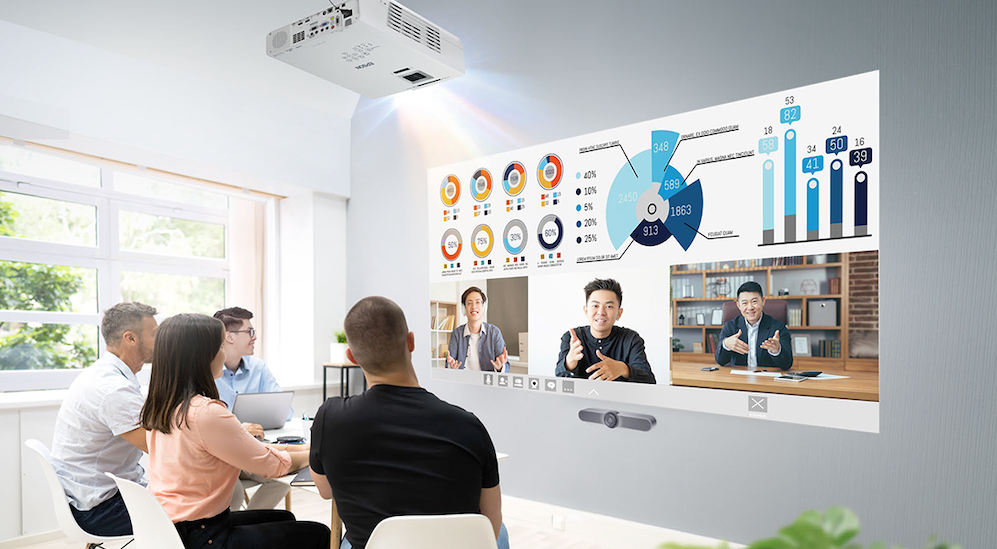

Massive, wide clear content for a full, uncompromised learning/ meeting experience
Enjoy a dynamic wide screen viewing experience with our standard throw model - EB-L260F. Project up till 293" for 21:9 aspect ratio, our EB-L260F allows users to experience all learning contents and interaction all at the same time - teams meeting or hybrid learning. No zooming in and out of content is required in a videocall. 16:6 and 21:9 aspect ratio are newly available for our standard throw EB-L260F model with Full HD resolution.





Large screen size - Easy to see
Creating a large screen environment that can be seen clearly in presentations, classes and signages, project images large enough for everyone in the room to read and maximize productivity. Laser projector with affordable price that looks clear even with the room lights on.





High Brightness and Image Quality
With powerful brightness of up to 4600 lm & Full HD resolution, EB-L260F delivers clear and detailed images even in bright environment.





Over 5,000,000:1 Contrast Ratio
Brilliantly rich, crystal-clear detail With excellent contrast ratio of over 5,000,000:1, EB-L260F delivers well-defined image to you - whether it is numbers, pictures, graphs or videos. It's all about seeing the little details in a better light.




Elevate your bright scene with improved visibility and a captivating contrast that truly stands out.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

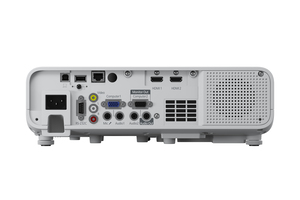

Connectivity:


Analog Input: D-Sub 15Pin: 2
Composite: RCA x 1 (Yellow)Digital Input: HDMI: 2 (HDCP 2.3)Analog Output: D-Sub 15Pin: 1 (Black) (in common with Computer 2)Audio Input: RCA: 1 (White, Red)
Stereo Mini Jack: 2 Audio Output: Stereo Mini Jack: 1 Mic I/O: Mic In: 1 (Stereo Mini)Control I/O: RS-232C: D-Sub 9pin x 1Others: USB Type A: 1 (For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)Network I/O: Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in and Optional (Using ELPAP11)

Contrast Ratio:


Contrast Ratio: Over 5,000,000 : 1

Screen Size (Projected Distance):


Zoom : Wide: 31" to 310" [88 cm to 906 cm]Standard Size: 62" screen 180cm

Geometric Correction:


Vertical/Horizontal Keystone: ±30° / ±30°Quick Corner: Yes (Manual)

Operating Temperature:


Operating Temperature: 0 – 2286m (0-7500ft): 0°C - 40°C (32°F - 104°F); 20%-80% Humidity, No Condensation
Over 2286m(7500ft): 0°C - 35°C (32°F - 95°F); 20%-80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:


Start-Up Period: Less than 9 seconds (Epson logo), Warm-up Period: 30 secondsQuick Start-Up: Less than 5 seconds (Display)

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 16W Monaural

Weight:


Weight: Approx. 4.2kg

Air Filter:


Type: Electrostatic FilterMaintenance Cycle: 20,000 hours

Fan Noise:


Fan Noise (Normal / Eco): 37dB / 27dB

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 299 x 325 x 90 mm

Brightness1:


Colour Light Output: 4,600lmWhite Light Output (Normal / Extended): 4600lm / 3200lm

Image:


Noise Reduction: YesSuper-Resolution: YesDetail Enhancement: Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):


Supported Speed for Each mode : Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps5
IEEE 802.11g (2.4GHz): 54 Mbps5
IEEE 802.11n (2.4GHz): 72.2 Mbps5
IEEE 802.11a (5GHz): 54 Mbps5
IEEE 802.11n (5GHz): 150.0 Mbps5
IEEE 802.11ac (5GHz): 325Mbps5

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps5
IEEE 802.11n (2.4GHz): 72.2 Mbps5
IEEE 802.11a (5GHz): 54 Mbps5
IEEE 802.11n (5GHz): 150.0 Mbps5
IEEE 802.11ac (5GHz): 325Mbps5Supported Mode : Infrastructure, Access Point (Wi-Fi Direct)

Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Wireless Specifications (Optional Wireless LAN):


Supported Speed for Each Mode *: Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps5, IEEE 802.11n (2.4GHz): 72.2Mbps5, IEEE 802.11a (5GHz): 54Mbps5, IEEE 802.11n (5GHz): 150Mbps5, IEEE 802.11ac (5GHz): 325Mbps5Supported Mode: Access Point (Wi-Fi Direct)Supported Security Type: WPA2-PSK (AES)

Projectors Facets:


Resolution, Projectors Facets: FullHDContrast Ratio, Projectors Facets: 5,000,000 : 1Inputs & Interfaces, Projectors Facets: RJ-45 & RS-232Brightness Range Lumens, Projectors Facets: 4001Features, Projectors Facets: Edge Blending
Screen Mirroring
WifiLaser / Lamp, Projectors Facets: LaserLight Source, Projectors Facets: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Main Parts Specification:


LCD: Size: 0.62” (C2Fine)
Resolution: Full HD (1080p)


Projection Lens
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51 – 1.77
Focal Length: 18.2 mm - 29.1 mm
Zoom Ratio: 1.0 – 1.62 (Optical Zoom)
Throw Ratio: 1.32 - 2.12

Lightsource:


Type: Laser DiodeLight Source Life (Normal/ Quiet/ Extended): 20,000 / 20,000 / 30,000 hrs

Direct Power On / Off:


Direct Power On / Off: Yes

Power Supply Voltage:


Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Power Consumption
LD On (Normal / Extended): 260W / 191W
Standby (Network On / Off): 2.0W / 0.5W

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats.

4 Internet connection required for download. Data usage fee may apply.

5 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.
