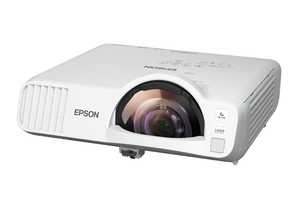

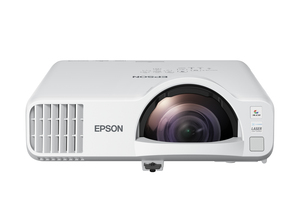

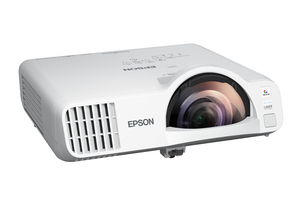

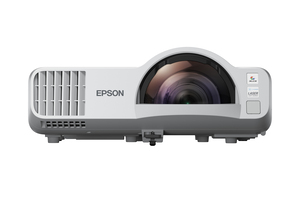

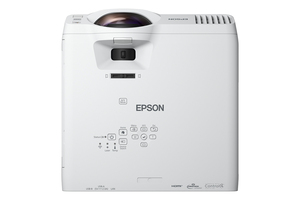

Epson EB-L210SW Wireless WXGA Short Throw Laser Projector

Lamp-free laser display for the classroom projects easy-to-read images up to 120"

Change the way you think about classroom displays with the EB-L210SW. Delivering 4,000 lumens of color and white brightness1 and high-quality WXGA resolution at up to 120" diagonal size—more than three times larger than a 75" flat panel—this short throw lamp-free laser display brings stunning clarity to presentations and encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, this display has a 20,000-hour, virtually maintenance-free laser light source2, so there are no lamps to replace—ever. Sharing your lesson plans just got easier with wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices3, as well as split screen functionality4 to display up to four devices simultaneously. You can project brilliant images, inspire collaboration and enjoy ease of use with the EB-L210SW—all at a remarkable value.

  • 4,000 lumens of colour and white brightness1
  • WXGA resolution for images up to 120"
  • 20,000-hour lamp-free laser light source2
  • Images more than three times larger than a 75" flat panel
  • Instant-on laser light source

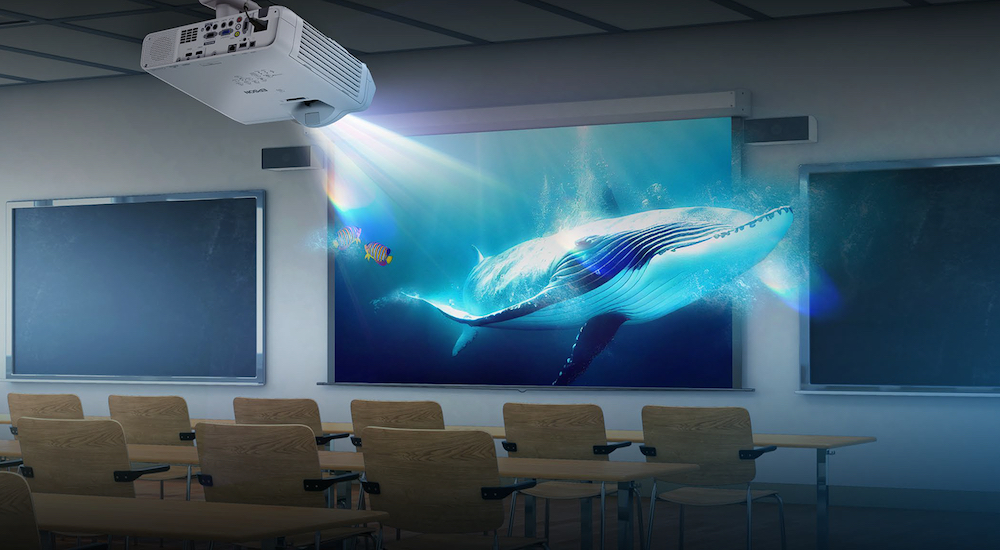

Maximise your collaboration, with minimal footprint at a close distance
With our short throw projectors, deliver clear and impactful presentations. Cast a larger image from less than an arm throw distance, and stay on top of your game for both business presentation and learning. Throw ratio of 0.48-0.65 allows you to project up to 120 " at 126cm.

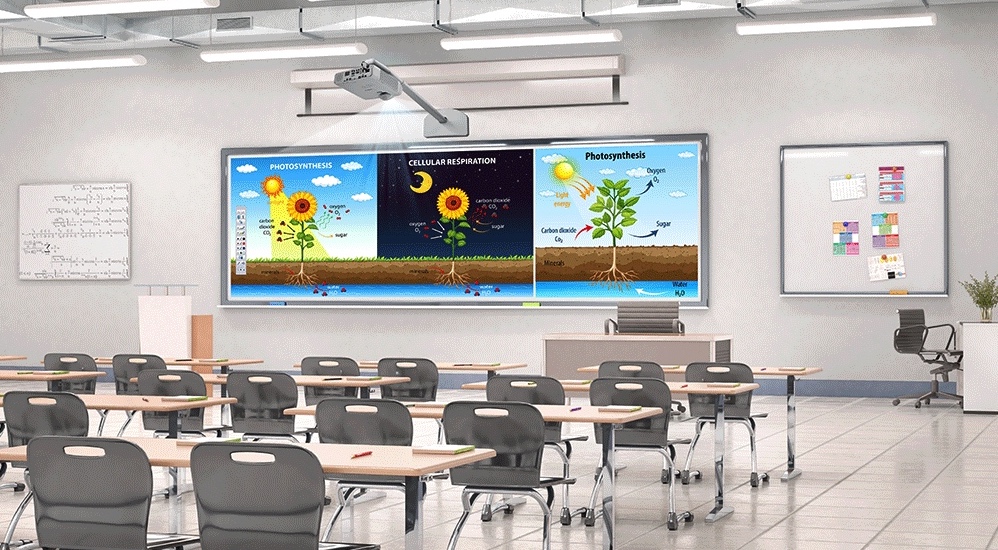

Large screen size - Easy to see
Creating a large screen environment that can be seen clearly in presentations, classes and signages, project images large enough for everyone in the room to read and maximize productivity. Laser projector with affordable price that looks clear even with the room lights on.





High brightness
With powerful brightness of up to 4,000 lm, EB-L210SW delivers clear and detailed images even in bright environments.





One projector, multiple possibilities
An adaptable piece that serve your every needs, EB-L210SW powers it up to put your statement pieces in the limelight, from projection signage at your reception to sharing your business-shaping ideas.



Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

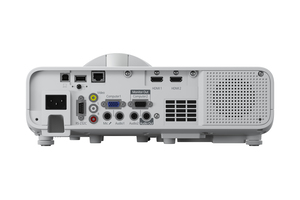

Connectivity:


Analog Input: D-Sub 15Pin: 2
Composite: RCA x 1 (Yellow)Digital Input: HDMI: 2 (HDCP 2.3)Analog Output: D-Sub 15Pin: 1 (Black) (in common with Computer 2)Audio Input: RCA: 1 (White, Red)
Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Mic I/O: Mic In: 1 (Stereo Mini)Control I/O: RS-232C: D-Sub 9pin x 1Others: USB Type A: 1 (For PC Free, Firmware Update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)Network I/O: Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-in and Optional wireless (using ELPAP11)

Contrast Ratio:


Contrast Ratio: Over 5,000,000 : 1

Screen Size (Projected Distance):


Zoom : Wide: 53" to 120" [54 cm to 126 cm]Standard Size: 87" screen 91 cm

Geometric Correction:


Vertical/Horizontal Keystone: ±15° / ±15°Quick Corner: Yes (Manual)

Operating Temperature:


Operating Temperature: 0 – 2286m (0-7500ft): 0°C - 40°C (32°F - 104°F); 20%-80% Humidity, No Condensation
Over 2286m(7500ft): 0°C - 35°C (32°F - 95°F); 20%-80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:


Start-Up Period: Less than 9 seconds (Epson logo), Warm-up Period: 30 secondsQuick Start-Up: Less than 5 seconds (Display)

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 16W Monaural

Weight:


Weight: Approx. 4.6kg

Air Filter:


Type: Electrostatic FilterMaintenance Cycle: 20,000 hours

Fan Noise:


Fan Noise (Normal / Eco): 37dB / 27dB

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 337mm x 325mm x 90mm

Brightness1:


Colour Light Output: 4,000lm

White Light Output (Normal/Extended)
4,000lm / 2,800lm

Image:


Noise Reduction: YesSuper-Resolution: YesDetail Enhancement: Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):


Supported Speed for Each mode : Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps5
IEEE 802.11g (2.4GHz): 54 Mbps5
IEEE 802.11n (2.4GHz): 72.2 Mbps5
IEEE 802.11a (5GHz): 54 Mbps5
IEEE 802.11n (5GHz): 150.0 Mbps5
IEEE 802.11ac (5GHz): 325Mbps5

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps5
IEEE 802.11n (2.4GHz): 72.2 Mbps5
IEEE 802.11a (5GHz): 54 Mbps5
IEEE 802.11n (5GHz): 150.0 Mbps5
IEEE 802.11ac (5GHz): 325Mbps5Supported Mode : Infrastructure, Access Point (Wi-Fi Direct)

Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Wireless Specifications (Optional Wireless LAN):


Supported Speed for Each Mode *: Access Point (Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54Mbps5,
IEEE 802.11n (2.4GHz): 72.2Mbps5,
IEEE 802.11a (5GHz): 54Mbps5,
IEEE 802.11n (5GHz): 150Mbps5,
IEEE 802.11ac (5GHz): 325Mbps5
Supported Mode: Access Point (Wi-Fi Direct)Supported Security Type: WPA2-PSK (AES)

Projectors Facets:


Resolution, Projectors Facets: WXGAContrast Ratio, Projectors Facets: 5,000,000 : 1Inputs & Interfaces, Projectors Facets: Epson Creative Projection App
RJ-45 & RS-232Brightness Range Lumens, Projectors Facets: 4001Short Throw / Ultra Short Throw, Projectors Facets: Short ThrowFeatures, Projectors Facets: Screen Mirroring
Wifi
Short ThrowLaser / Lamp, Projectors Facets: LaserLight Source, Projectors Facets: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Main Parts Specification:


LCD: Size: 0.59” (C2Fine)
Resolution: WXGA


Projection Lens
Type: No Optical Zoom / Focus (Manual)
F-number: 1.6
Focal Length: 6.4mm
Zoom Ratio: 1.0 – 1.35 (Digital Zoom)
Throw Ratio: 0.48 – 0.65

Lightsource:


Type: Laser DiodeLight Source Life (Normal/ Quiet/ Extended): 20,000 / 20,000 / 30,000 hrs

Direct Power On / Off:


Direct Power On / Off: Yes

Power Supply Voltage:


Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Power Consumption
LD On (Normal / Extended): 260W / 191W
Standby (Network On / Off): 2.0W / 0.5W

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats.

4 Consult your user manual for Split Screen input combinations.

5 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.
