Epson EB-982W WXGA 3LCD Projector

Product Models displayed on this website may be available in certain regions only.

Larger, Sharper, More Impactful Viewing Experience.

Bring powerful projection to your classroom with the advanced EB-982W projector. The perfect addition to any learning environment, this ultra bright, 4,200-lumen projector enhances lesson plans and promotes collaboration with vibrant, widescreen displays. Featuring an integrated Moderator function with iProjection, the EB-982W allows up to 50 users to connect and share content from laptops or mobile devices. Designed with durability in mind, this premium projector provides a long lamp life up to 17,000 hours in ECO Mode. Plus, with a 1.6 optical zoom, a 16 W speaker, a microphone input, and dual HDMI ports, creating dynamic, high-definition displays has never been easier.

4,200 lumens of color and white brightness
Native WXGA resolution and 16:10 aspect ratio
Long lamp life up to 17,000 hours in ECO Mode
1.6x optical zoom for easy placement and installation
Built-in Moderator function using iProjection for easy wireless presentation

    •

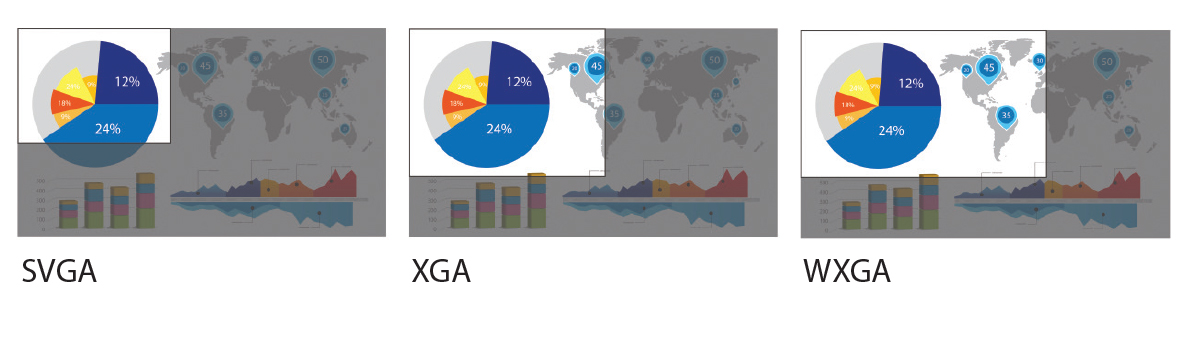

Higher resolution quality
Compared to the normal SVGA resolution, Epson EB-982W WXGA resolution is your answer to clearer text and sharper, more detailed images.




Bigger projections
When you are looking for bigger display, projection is the obvious answer ensuring that your information is conveyed clearly and accurately for everyone in the room.



Split Screen Function for Wired / Non-wired Devices
A split screen function enables the simultaneous projection of two images from separate devices through both wired and wireless connections on a single screen, eliminating the need for a second projector. Classroom lessons and business meetings can now be more engaging by connecting the projector with a document camera and a PC or tablet.

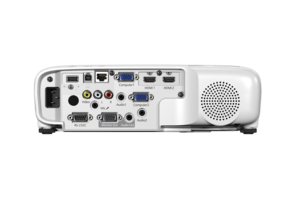

Various Interfaces
Epson business projectors support a wide range of connectivity options including HDMI, VGA, and USB. These interfaces support connections to both the latest digital devices as well as the existing legacy of analogue products without the need for adaptors.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness2:


White Light Output (Normal/Eco): 4,200 lmColour Light Output: 4,200 lm

Connectivity:


USB Interface: USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)Network: Wireless: 1 (ELPAP11)
Wired LAN: 1Analog Input: Composite: 1 RCA
D-Sub 15pin: 2Digital Input: HDMI: 2Output Terminal: D-Sub 15Pin: 1Audio Input: Stereo Mini: 2
2RCA (White & Red): 1Audio Output: Stereo Mini Jack: 1Mic I/O: Stereo Mini: 1Control I/O: RS-232C: 1

Contrast Ratio:


Contrast Ratio: 16,000:1

Screen Size (Projected Distance):


Standard Size: Tele: 29” to 280” [1.40 to 13.71 m]
Wide: 29” to 280” [0.85 to 8.45 m]

Geometric Correction:


Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only)Quick Corner: Yes

Operating Temperature:


Operating Temperature: Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:


Operating Altitude: 0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:


Start-Up Period: Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off

Direct Power On/Off:


Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 309 x 90 x 282 mm

Weight:


Weight: Approx. 3.1 kg

Air Filter:


Type: High Efficiency FilterMaintenance Cycle: 10,000 / 20,000 hours*3

Fan Noise:


Fan Noise (Normal / Eco): 37dB / 28dB

Power:


Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Projectors Facets:


Resolution, Projectors Facets: WXGAContrast Ratio, Projectors Facets: 16,000:1Brightness Range Lumens, Projectors Facets: 4001Features, Projectors Facets: Wifi
Quick CornerLaser / Lamp, Projectors Facets: Lamp

Optional Wireless & Built In Lan Specifications:


Supported Speed for each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

Specifications of Main Parts:


LCD: Size:0.59” (C2fine)
Native Resolution: WXGALightsource: Life (Normal / Eco): 6,500 / 17,000 hours
Type: 230W UHEAspect Ratio: 16:10Projection Lens: Zoom Ratio: 1 – 1.6
Focal Length: 18.20 – 29.20 mm
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51-1.99
Throw Ratio: 1.38 – 2.24 (Wide to Tele)

Notes:

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*3 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3 ). Based on the Epson’s in-house test results
