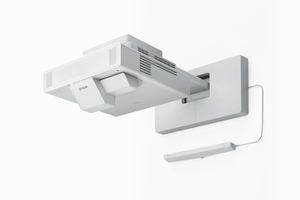

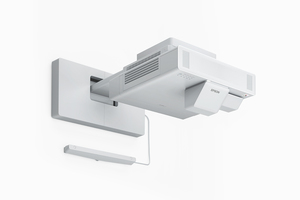

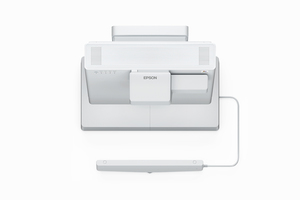

Epson EB-1485Fi Full HD 3LCD PROJECTOR

Product Models displayed on this website may be available in certain regions only.

Seamless Collaboration in Ultra-Wide Displays

Up your game and bring your presentations and learning experiences to life with Epson EB-1485Fi projector. Designed for meeting spaces and educational purposes, the ultra wide, super bright Full HD1 laser display allows image projection of up to 120" diagonal at the 16:6 ratio. A true PC-free digital whiteboard, the Epson EB-1485Fi projector allows you to draw, save, print, and even email without a computer.



Ultra Wide Display
The new 16:6 display allows maximization of the existing whiteboard, providing an ultra-wide display of up to 120 inches diagonal.

Seamless Edge Blending
Engage your audience in compelling and fascinating presentations on a larger seamless screen by joining two Epson EB-1485Fi projectors (with interactivity), or up to four (without interactivity) at any one time. With Epson EB-1485Fi's built-in edge blending function, you can now interact, control, and present immersive content seamlessly over one large panoramic screen.

20,000 hours of Maintenance-free Use
The newly designed laser light source delivers 20,000 hours* of maintenance-free** use for the laser light source only. And with the advanced electrostatic filter having an equally long-lasting life, you enjoy peace of mind in using these highly reliable laser projectors.

Quick Information Sharing
With the rich input-output options provided by the smart interactive projector platform, you can enjoy great flexibility of importing information from various sources and sharing the meeting results in multiple ways, saving you precious time and increasing productivity.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Brightness:


White Light Output (Normal / Eco): 5,000lm / 3,500lmColour Light Output: 5,000lm / 3,500lm

Connectivity:


Standard: Supported Speed For Each Mode Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP Network: Wireless: Built-in (Screen Mirroring or WLAN Switchable Usage) x 1 ; USB Type A (In common with Memory I/O) x 1 using Optional Wireless LAN UnitAnalog Input: D-Sub 15Pin: 2 (Blue, Black)
Composite: RCA x 1 (Yellow)Digital Input: HDMI: 3 (HDCP2.3)
HDBaseT: 1 (HDCP2.3)Analog Output Terminal: D-Sub 15Pin: 1 (Black) (in common with Computer 2)Digital Output Terminal: HDMI: 1Audio Input: Stereo Mini Jack: 3Audio Output: Stereo Mini Jack: 1Mic I/O: Stereo Mini x 1Control I/O: RS-232C: D-Sub 9pin x 1
Touch Unit Control: Mini DIN 8pin x 1
Remote: Stereo Mini x 1 (for Control Pad)Others: USB Type A: 2 (for USB Memory, Printer, USB Document Camera, Firmware Update, Copy OSD Settings)
USB Type B: 2 (for USB Display, Mouse, K/B, Control, Interactive, Saving Data File to PC via Cable)

Contrast Ratio:


Contrast Ratio: Over 2,500,000 : 1

Screen Size (Projected Distance):


Screen Size (Projected Distance): 65”-100” [39.2-61.3 cm] @ 16:9 ; 61”-120” [39.2 – 79.6 cm] @ 16:6

Geometric Correction:


Vertical/Horizontal Keystone: ±3° / ±3°Quick Corner: Yes

Operating Temperature:


Single Use: 0 m to 2286 m (0 ft to 7500 ft): 0 °C to 40 °C [41 °F to 104 °F] ; 20% to 80% Humidity, No Condensation
Over 2286 m to 3048 m (7500 ft to 10000 ft): 0 °C to 35 °C [41 °F to 95 °F] ; 20%-80% Humidity, No CondensationMulti-projection Use: 0 m to 2286 m (0 ft to 7500 ft): 0 °C to 35 °C [41 °F to 95 °F] 20% to 80% Humidity, No Condensation
Over 2286 m to 3048 m (7500 ft to 10000 ft): 0 °C to 30 °C [41 °F to 86 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1500 m / 4921 ft, with High Altitude Mode: 0 m to 3048 m (0 ft to 10000 ft)

Start-Up Period:


Start-Up Period: Less than 8 seconds, Warm-up Period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 8W x 8W Stereo

Direct Power On/Off:


Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):


Fan Noise (Normal/Eco): Fan Noise (Normal / Extended / Quiet): 37dB / 37dB / 28dBDimension Excluding Feet (W x H x D): 458 x 209.5 x 375 mm

Weight:


Weight: Approx. 9.8 kg

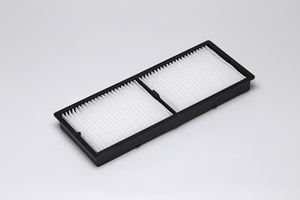

Air Filter:


Type: Electrostatic FilterMaintenance Cycle*4: 20,000 hours

Wireless LAN – Built-In:


Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2
IEEE 802.11g (2.4GHz): 54Mbps*2
IEEE 802.11n (2.4GHz): 72Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150Mbps*2
IEEE 802.11ac (5GHz): 325Mbps*2Access Point: IEEE 802.11g (2.4GHz): 54Mbps*2
IEEE 802.11n (2.4GHz): 72Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150Mbps*2
IEEE 802.11ac (5GHz): 325Mbps*2Supported Mode: Infrastructure, Access Point (Wifi Direct)
Wireless LAN Security Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EA ; Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Miracast:


Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2
IEEE 802.11g (2.4GHz): 54Mbps*2
IEEE 802.11n (2.4GHz): 72Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150Mbps*2
IEEE 802.11ac (5GHz): 325Mbps*2Access Point: IEEE 802.11g (2.4GHz): 54Mbps*2
IEEE 802.11n (2.4GHz): 72Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150Mbps*2
IEEE 802.11ac (5GHz): 325Mbps*2Supported Mode: Infrastructure, Access Point (Wifi Direct)

Specifications of Main Parts:


LCD: Size: 0.62" (C2fine)
Resolution: 1080p (1366 x 768 x 2)*Lightsource: Type: Laser Diode
Life (Normal / Eco / Extended): 20,000 / N/A / 30,000 hrsProjection Lens: Type: No optical zoom / Focus (Manual)
F-Number: 1.50
Focal Length: 3.9mm
Zoom Ratio: 1.0 - 1.35 (Digital Zoom)
Throw Ratio: 0.27 - 0.37 (Wide to Tele)

Power:


Power Consumption: Lamp On (Normal / Eco): 366W / 262W
Standby (Network On / Off): 2.0W / 0.5WPower Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Interactive Input Device:


Interactive Pen Dimensions: 161 x 24 mm (diameter) maximumInteractive Pen Weight: 30g (Excluding a battery)

Control I/O:


Interactive Sync.: In x 1, Out x 1

Input Devices:


Interactive Pen: Digital Pen (Easy Interactive Pen A & B)Fingers: Yes (Up to 6 Fingers)

Touch Unit:


Maximum Dimension (D x W x H): 422 x 40 x 65 mmWeight: 620g

Interactive Unit:


Technology: InfraredInput Devices: Interactive Pen: Digital Pen (Easy Interactive Pen A & B)
Fingers: Yes (Up to 6 Fingers)Connection To Computer: USB, NetworkCalibration: Pen: Auto / Manual (25 Points)Functions: Hover, Right Click, Auto Adjust Pen Area

Wireless Specifications (Screen Mirroring):


Supported Speed: Infrastructure:
IEEE 802.11b (2.4GHz): 11Mbps*, IEEE 802.11g (2.4GHz): 54Mbps* IEEE 802.11n (2.4GHz): 72Mbps*, IEEE 802.11a (5GHz): 54Mbps*, IEEE 802.11n (5GHz): 150Mbps*, IEEE 802.11ac (5GHz): 325Mbps*

Access Point: (Wifi Direct):
IEEE 802.11g (2.4GHz): 54Mbps*, IEEE 802.11n (2.4GHz): 72Mbps*, IEEE 802.11a (5GHz): 54Mbps*, IEEE 802.11n (5GHz): 150Mbps*, IEEE 802.11ac (5GHz): 325Mbps*
*These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions. Supported Connection Mode: Infrastructure, Access Point (Wifi Direct)

Notes:

Pixel shifting technology achieves Full HD resolution on screen.

These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.

* 20,000H life for laser light source: Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter.

** For laser light source only. No maintenance for the light source required up to 20,000H.
