Label Printers Epson LabelWorks LW-Z900FK

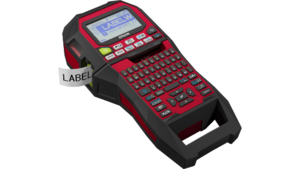

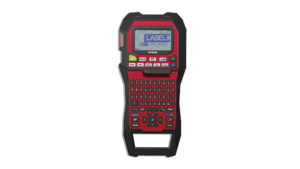

Epson LabelWorks LW-Z900FK PC-Connectable Industrial Label Printer

The Ideal Partner In Heavy-Duty Labelling Solutions.

The Epson LabelWorks LW-Z900FK label printer is engineered to fuse form and function. Epson tops it all with an ergonomic design and intuitive short-cut keys to deliver an experience that spells efficiency and productivity.

      • Tape width: 6, 12, 18, 24, 36 mm
      • Print speeds of up to 35mm/sec
      • Auto Tape Rewind Function
      • Short cut keys for easy configuration
      • Label-editing software included




Where to Buy

Extraordinary Productivity
Print speeds of up to 35mm/sec at 360dpi resolution will allow for a quick turnaround time with exceptional print quality. Engineered for increased productivity with its intuitive half-cut, pull-and-print and drop-stop features, you can peel individual labels as they print or commit to continuous printing.

Minimal Operating Cost
Minimise tape wastage and maximise cost-savings with a large backlit screen to preview printouts. Get more out of each roll of label tape with print margins as low as 4mm* through the auto tape rewind function that retracts excess tape. Epson’s labels allow lasting longevity and contribute to more cost-savings by eliminating the need for constant replacement.

Engineered for Ease
Intuitive Ergonomic Design
Configure your printouts quicker, with more efficiency through conveniently located short-cut keys to configure your printouts. Experience convenience through the ease of tape cartridge replacement from a front opening and the magnetic mounting capability.

Assorted Variety of Tapes
To complement the LW-Z900FK, Epson offers an assorted variety of high-quality labels in a diverse range of style, size and colours to let you create application-specific labels to accommodate your needs. Tape widths range of up to 36mm in standard, metallic and pastel colours. Taking industrial applications into considerations, Epson’s comprehensive list offers cable-wrap, die-cut, heat shrink tapes, and magnetic tapes.

What's in the box:

Power Adapter
USB Cable
Installation Guide
1 x 12mm Black on White tape (4m)
1 x Li-ion Battery (1,950mAH)
2 x Magnetic Attachment
Carrying Case


Description: Fast and high quality industrial label printing, accept widest media to boost productivity.


Width: 6, 9, 12, 18, 24, 36 mmTape Type: LK Tape Cartridges


Printing: Cutter Type: Automatic Full Cut, Half Cut
Printing Technology: Thermal Transfer
Printing Resolution: 360 dpi / 384 dotText Data: Printable Lines: 13 lines / PC DependentMemory: Files (Built-in Memory): 100 files / PC DependentPrint Setting: Repeat Printing: Up to 99 / 999 copies (PC)
Print Margin: Minimum 1mm (PC/App Dependent)
Lead Waste: 4mm^ (standard label) / 19mm (specialty label)


Character Settings: Font Sizes: 13

Print Modes:

Vertical Printing: YesMirror Printing: YesBarcode Printing: YesWire Wrap: YesCable Wrap: YesFlag Style (Double-sided): YesDouble-sided Tab: YesImage Printing: YesDatabase Printing: Yes

PC Connection:

Interface: USBOperating System: WindowsBattery: Li-ion Battery (Bundled) / 6AA (Optional)AC Adapter: Bundled

Overall Dimensions (D x W x H):

Overall Dimensions (D x W x H): 295 x 136 x 97mm


Max Print Speed: 15 mm/sec (6 AA Batteries)


Weight: 1.25kg

Print Settings:

Margins: Batch printing settings from 1 to 500mmBarcodes: via Label Editor: 14 types EAN 8, EAN 13, Code 39, Code 128, UPC-A, UPC-E, ITF, CodaBar, QR Code, NW-7 (CodaBar), EAN-128(GS1-128), GS1 DataBar, MaxiCode, PDF417, DataMatrix


^ If print margin of label is set to 1mm,
- A 4mm lead waste will be ejected when Half-cut function is switched on and a 19mm lead waste will be ejected when Half-cut function is switched off.
- For specialty labels (HST tube, cable wrap and magnetic), a 19mm lead waste will be ejected because Half-cut function is not available for such labels.
