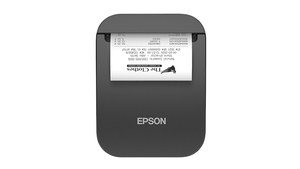

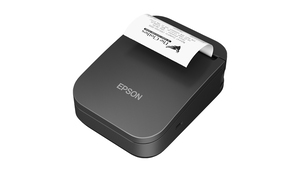

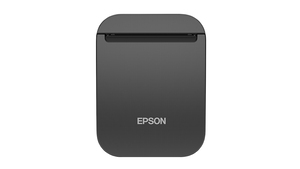

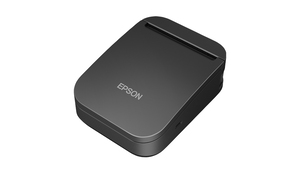

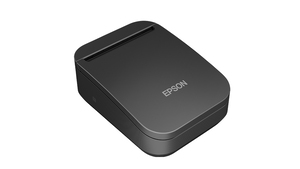

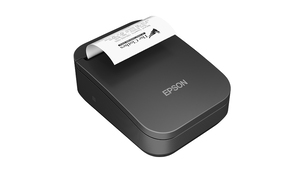

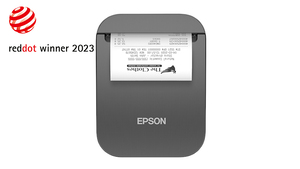

Epson TM-P80II Wireless Portable Receipt Printer

Durable and reliable 3 inches portable printer for on-the-go printing

Designed with wearability in mind, the compact Epson TM-P80II portable receipt printer is the ideal solution for on-the-go printing with its long battery life and multiple connectivity options. With high impact protection, conforming to Ingress Protection 54 (IP54) standard for dust and liquid resistance, the portable printer is built to withstand harsh environments, ideal for outdoor work in adverse conditions.

      • Built for hash environment with high impact protection, dust, and liquid resistance.
      • Built for outdoor usage with long battery life of up to 47 hours.
      • Compact ergonomic design for the better user experience.


Portable and Lightweight
Ultra compact, easy for users to wear (belt clip included); helps prevent carry fatigue

Robust Design
IP54-rated enclosure is water- and dust-resistant; holds up to rigorous use, with a drop rating of up to 1.9 meters

Long-lasting Battery Life
Up to 47 hours on a full charge2 (battery and USB-C cable included)

Fast Battery Charging Capability
Fully charges as fast as 3 hours4(charger sold separately)

Versatile Connectivity
Wireless connectivity options (Wi-Fi 5 or Bluetooth 5.0) to provide connections to a wide variety of devices and networks

Exceptional Print Quality and Ultra Fast Print Speed
Quickly produce sharp and crisp text, barcodes and logos at up to 100 mm/sec

Modern Design
Sleek design suited to complement your business

Enhance Your Printing with Accessories
Choose from a wide range of optional accessories, such as single or quad battery charger, spare battery, belt strap, shoulder strap and soft carrying case (each sold separately)

Paper Saving Mode
Helps reduce cost by decreasing paper usage

What's in the box:

  • Belt Clip
  • Battery
  • USB Cable (Type-C to Type-C)
  • Roll Paper
  • Setup Guide

General Information:

Printer Driver: Windows Driver (APD), OPOS, OPOS.NET, JavaPOS(Windows, Linux), TM Virtual Port Driver, ePOS SDK (iOS, Android, Javascript)LED Indicators: Blue LED - Power, Battery Level, Interfaces (Bluetooth, Wi-Fi)
Orange LED - Error, Battery ChargingBuilt-in Feature: Paper Reduction, Status Notification, Server Direct PrintUtility Tools: TM Utility (Android, iOS), TM-P20II/TM-P80II Utility (Windows PC), TM-Print Assistant (Android, iOS), Deployment Tool, Monitoring Tool, Epson WebConfig, TM Bluetooth Connector, Firmware Updater, BmpToRaster, ePOS-Print*3

Print Font:

Font: ANK(48 cl): 12 x 24 / 9 x 17 (default) / 8 x 16;
Jap Font: 12 x 24 / 10 x 24;
Kanji Font: 24 x 24 / 20 x 24 / 16 x 16;
Special Font: 12 x 24 / 9 x 24;
India Font: Width x 32 / Width x 24
ANK(42 cl): 13 x 24 / 9 x 17 / 8 x 16;
Jap Font: 13 x 24 / 10 x 17 / 8 x 16;
Kanji Font: 26 x 24 / 20 x 24 / 16 x 16;
Special Font: 12 x 24 / 9 x 24;
India Font: Width x 32 / Width x 24Character Set: 95 Alphanumeric, 18 set International, 128 x 43 graphicsBarcode Standards: Bar code: UPC-A, UPC-E, JAN8, EAN8, JAN13, EAN13, ITF, Codabar(NW-7), Code39, Code93, Code128, GS1-128, GS1 DataBar
2D Symbol: PDF417, QR code, Maxi Code, Data Matrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology

Data Buffer:

Data Buffer: Bluetooth: 64 KB
Wi-Fi: 4 KB


Roll Paper: 79.5 ± 0.5 mm (W) × Dia. 18 - 51 mmThickness: Max 75μm, Min 50μm


Colour: Epson Black (EBCK)

Dot / Line:

Dot / Line: 576 dots (48 column), 546 dots (42 column)

Dot / Inch:

Dot / Inch: 203 x 203 dpi

Overall Dimension (D x W x H):

Overall Dimension (D x W x H): 138 x 105 x 57.6 mm

Easy Setting:

Easy Setting: NFC


Standard: Bluetooth Model: USB-C x1, Bluetooth 5.0
Wi-Fi Model: USB-C x1, Wi-Fi 5.0


MTBF: 120,000 hoursPrinthead Life: 50 KmMCBF: 16 million linesPrinter Mechanism Life: 10 million linesIP Protection Rating: IP54Drop Rating: 1.9m


Weight: Approx. 379g


Battery Life: Bluetooth: 47 Hrs
Wi-Fi: 25 HrsBattery Type: Lithium Ion BatteryCharging Port: USB-C*Charging Rating: 5V - 3A: 2.5 Hrs (10 - 30ºC), 5 Hrs (0 - 10ºC)
5V - 1.5A: 3 Hrs (10 - 30ºC), 6 Hrs (0 - 10ºC)
5V - 900/500mA: 14 Hrs (10 - 30ºC), 28 Hrs (0 - 10ºC)

Languages Support:

Printer Languages : ANK + Thai/Viet/India + Simplified Chinese + Traditional Chinese + Korean + Japanese + Unicode (UTF-8)*1


Print Speed: 100 mm/sPrinting Method: Thermal Line Printing


1 Unicode Support applicable for languages listed above.

2 Battery life result may differ from usage. Testing Conditions:
1) Battery: New 2) Start of Charging state: Full Charge 3) Print Patter: ANK 42 digits, 20 lines + paper feed for 6 lines
4) Interval of print: Each 5 minutes 5) Environment: normal temperature (25 degree) 6) Print density: 100%
7) Access point : CISCO AIR-LAP1142N-P-K9 8) Wi-Fi condition: beacon interval: 200ms, DTIM: interval 1, disable Broadcast
9) Battery state: from full charge to until 0% (E level)

3 ePOS-Print applicable for Wi-Fi version only

4 Speed based on charging with Epson genuine battery chargers (OT-SB20I, OT-SB80II, OT-CH20II, OT-CH80II).

*USB-C Charging Specification

The P20II, P80II supports charging through 3rd party USB charging devices such as USB wall adapter, USB device with power delivery.

Be sure to use Product that meets the following electrical specifications:

  • Power Rating: 15W recommended
  • Supports up to 40W
  • Rated output: 5V/8.0 A or less
  • Maximum output: 40VA or less

Be sure to use Product that meets appropriate and applicable safety certifications, ratings and regulation, such as:

  • FCC Part 15 compliant
  • UL/CSA/TUV USB safety certified
