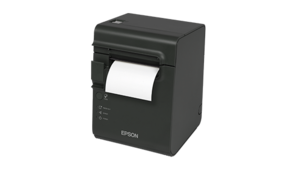

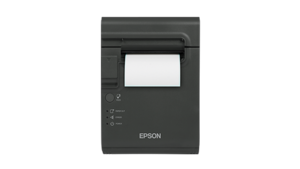

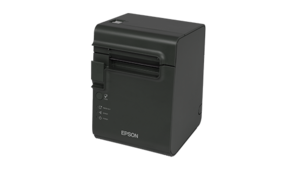

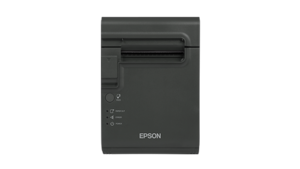

Epson TM-L90 Thermal Label Printer

Fast and accurate label solutions

Power up your business with high-quality receipts and labels with Epson’s dual-function thermal printers – TM-L90 series. Featuring blazing print speed of up to 150mm per second in high-speed mode, the TM-L90 is designed and built with the reliability that Epson is trusted in. With the optional wall-mount kit, this compact label printer works perfectly in space constraint environments.

Superb Paper Handling
Customers will not be kept waiting when you equip your business with the Epson TM-L90, making it suitable for use in retail and hospitality industry. With a maximum printing speed of 150mm/sec, your receipt or label will be ready in seconds – even when printing barcodes and logos.

With an all-rounded paper-handling versatility, it can process paper rolls of up to 90mm in diameter, reducing paper-loading downtime and saving on the cost of
purchasing label paper.

In addition, TM-L90 offers selectable paper width. With a simple spacer adjustment, it can be modified to suit a variety of label types and sizes for both standard and adhesive-backed paper.

Superior Design
A compact design makes TM-L90 ideal for counters with limited space. Its low profile means that face-to-face contact with your customers is unimpeded, and there are no sharp corners or jutting out parts to get in the way.

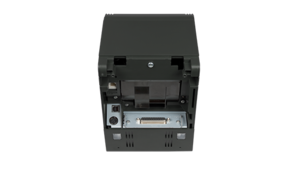

It also removes the problem of unsightly cables by having all its interfaces beneath the printer. With flexible installation options, you can now choose to keep the cables out of sight in your premises.

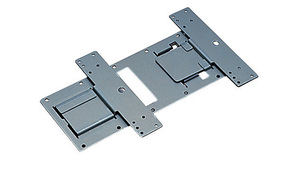

TM-L90 blends perfectly into even the most refined environment. Install the printer vertically or horizontally, or use the optional wall-hanging bracket to move it off the counter altogether.

Remarkable Usability
The printer is easy to use which requires almost no training. With simple and straight-forward paper feeding, the drop-in loading method allows operators to open and load new paper within a few short seconds.

Not only are paper jams unlikely with TM-L90, but they are easy to clear if they do occur. With a long lifespan, it can print up to twenty million lines, offering the reliability that you seek.

In addition, TM-L90 can be easily integrated with existing POS application as it supports the same standard commands for the retail environment.

Print Font:

Font: 9 × 17 / 12 × 24Characters Per Inch: 22.6cpi (9 x 17 font) / 16.9cpi (12 x 24 font)Column Capacity: 64 / 48 / 72 columnsCharacter Size (W x H): 1.13 x 2.13 mm / 1.5 x 3.0 mm / 1.0 x 2.0 mmCharacter Set: 95 Alphanumeric, 37 International, 128 x 11 Graphic, Traditional / Simplified Chinese, Thai, Japanese

OS Support:

OS Support: Microsoft Windows 8 / 7 / Vista/ XP / POSReady / Server2012 / Server2008 / Server2003

Data Buffer:

Data Buffer: Receive buffer 4 Kb / 45 bytes


Overall Dimensions (W x D x H): 148 × 140 × 203 mmWeight: Approx. 1.9kg

Auto cutter life:

Receipt: 2 million cutsLabel: 1 million cuts


Interface: Built-in USB + 25-pin serial, with optional parallel and ethernet interface modules


MTBF: 360,000 hoursMCBF: 70 million lines

Print Fonts:

Character Set: 95 alphanumeric, 18 international character sets, extended graphics 128 x 47 pages (including user-defined page)Barcode: UPC-A, UPC-E, JAN8 (EAN), Jan13 (EAN), ITF, Code39, Code93, Code128, Codabar (NW-7), PDF417, MaxiCode, QRCode, GS1-128, GS1 DataBar, Omnidirectional, GS1 DataBar Truncated / Stacked / Stacked Omnidirectional / Limited / Expanded / Expanded Stacked, Composite Symbology, DataMatrix

Paper Specifications:

Paper Saving: Back Feed: Yes (When operating using EDC/POS commands only)Roll Paper: Paper Width: 80 mm (factory setting) or 38 – 70 mm (Users can change the paper width per 1 mm)
Diameter: 90 mm
Changing Method: Paper guide
Paper Type: Receipt w/o BM, Receipt w/BM, Die-cut label w/o BM, Die-cut label w/BM, Continuous label w/o BM, Continuous label w/BM
