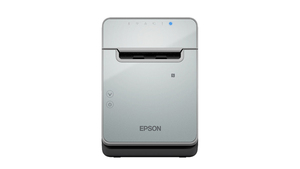

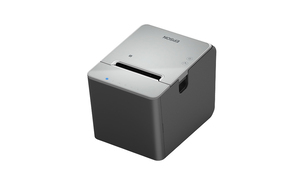

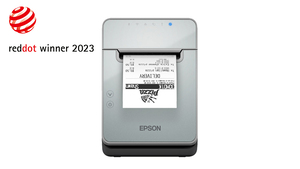

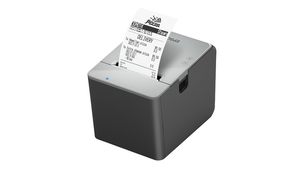

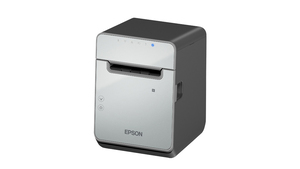

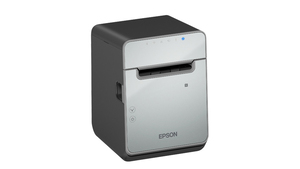

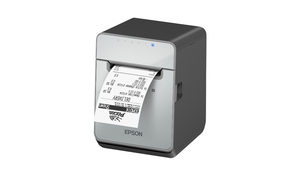

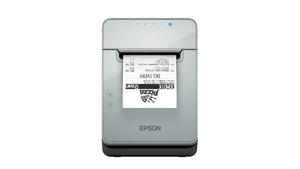

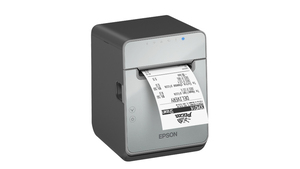

Epson TM-L100 Liner-free Compatible Thermal Label Printer

Liner-free media. Advanced connectivity.

Integrate the compact, stylish, and innovative Epson’s TM-L100 liner-free label printer into your business today. Especially suitable for the fast-paced F&B environment, its stainless steel front panel and silicon laminated surface are easy to clean. In addition, the printer is IP22 equivalent* for water resistance, making it ideal for wet environments. The TM-L100 has a print speed of up to 170mm/s, delivering clear prints even on strong adhesive labels.

*Vertical installation. Excluding paper.

      • Faster print speed of up to 170mm/s even on strong adhesive labels
      • Enhanced liner-free label compatibility
      • Durable and reliable product for kitchen environments


Extensive liner-free media support
Epson tested media supports high adhesive strength and is ideal for a wide variety of use cases across hospitality, retail and more

Flexible connectivity
For virtually any environment with built-in USB and Ethernet plus options for Serial port

Reliability you can count on
Engineered for liner-free labels with long auto cutter and printhead life

Online ordering ready
Server Direct Print1 lets printer retrieve orders from a web server and print a label without POS software integration

Advanced paper-saving features
White space reduction and character height reduction help reduce media usage up to 47 percent2

Label-taken sensor
Accepts multiple jobs but only prints one label at a time; prevents continuous printing and labels adhering to each other

Dynamic printing
Simultaneously share between legacy POS terminals, tablet and mobile devices with multiple interfaces with the ability to print from cloud servers

Multiple languages support
Enable multi-language printing with Unicode UTF-8 support3

What's in the box:

  • AC Adapter & Cable (PS-190)
  • 58mm paper guide
  • 40mm paper guide
  • Setup guide
  • User Manual
  • Rubber Foots
  • Fixing Tape
  • Locking Wire Saddle

General Information:


Printer Driver: Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Windows, Linux), TM Virtual Port Driver, ePOS SDK (iOS, Android, Javascript), TM-Print Assistant (Android, iOS)Sensors: Paper End, Cover OpenLED Indicators: Blue LED - Power, Interfaces (Ethernet)
Orange LED - Error and/or Paper OutBuilt-in Feature: Status Notification, Server Direct Print*3

Print Font:


Font: ANK: 12 x 24 (default) / 9 x 17;
Kanji Font: 24 x 24 / 20 x 24;Character Set: 95 Alphanumeric, 18 set International, 128 x 43 graphicsBarcode Standards: Bar code: UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code128, Code 128 auto, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar 2D Symbol: PDF417, QR code, Maxi Code, Data Matrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology

Paper:


Dimensions (mm): Roll Paper: 79.5 ± 0.5 (W) × Dia. 103 mm
57.5 ± 0.5 (W) × Dia. 103 mm
39.5 ± 0.5 (W) × Dia. 103 mm

Colour:


Colour: Epson Black (EBCK)

Dot / Line:


Dot / Line: 552 dots (80mm), 420 dots (58mm), 280 dots (40mm)

Dot / Inch:


Dot / Inch: 203 x 203 dpi

Printer Software:


Utility: TM-L100 Utility (Windows), Deployment Tool, Monitoring Tool, Epson TMUSB Identifier Utility, Firmware Updater

Interfaces:


Serial: Serial, Ethernet, USB B x 1

Dimensions and Weight:


Dimensions (W x D x H): Landscape Placement: 140 x 207 x 148.5 mm
Vertical Placement: 140 x 148.5 x 207 mm

Reliability:


MTBF: Thermal Paper: 360,000 hours
Liner-Free Label: 360,000 hoursMCBF: Thermal Paper: 70 million lines
Liner-Free Label: 35 million linesPrinter Mechanism Life: Thermal Paper: 20 million lines
Liner-Free Label: 10 million linesAuto Cutter Life: Thermal Paper: 2 million cuts
Liner-Free Label: 1 million cuts

Weight:


Weight: Approx. 1.9 Kg

Power:


Rated Voltage: DC 24 V ± 7 %Power Consumption: Operating: 43.2 W / Standby: 2.4 WPower Supply: AC Adapter (Model: PS-190)Temperature & Humidity: Temperature: 5 - 45° C (41 - 113° F)
Humidity: 10 - 90% RH

Receive Data Buffer:


Receive Data Buffer: 4 KB

Languages Support:


Printer Languages : ANK + Arabic + Simplified Chinese + Traditional Chinese + Korean + Japanese (Unicode support*3)

Printing:


Print Speed: Thermal receipt: 170mm/sec
Liner-Free Label: 170mm/secPrinting Method: Thermal Line Printing

Notes:

1 Only works with iOS devices.

2 Paper savings depend on the text and graphics printed on the receipt.

3 Unicode support is only for languages listed above.
