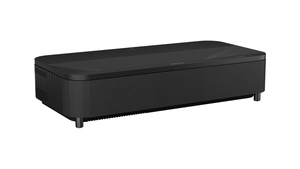

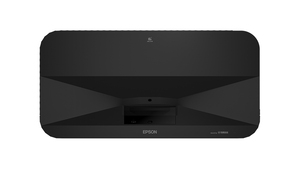

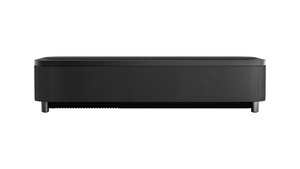

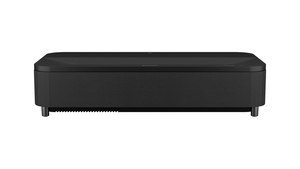

Epson EpiqVision Ultra EH-LS800B 4K PRO-UHD Laser Projection TV

The Epic Entertainment Experience.

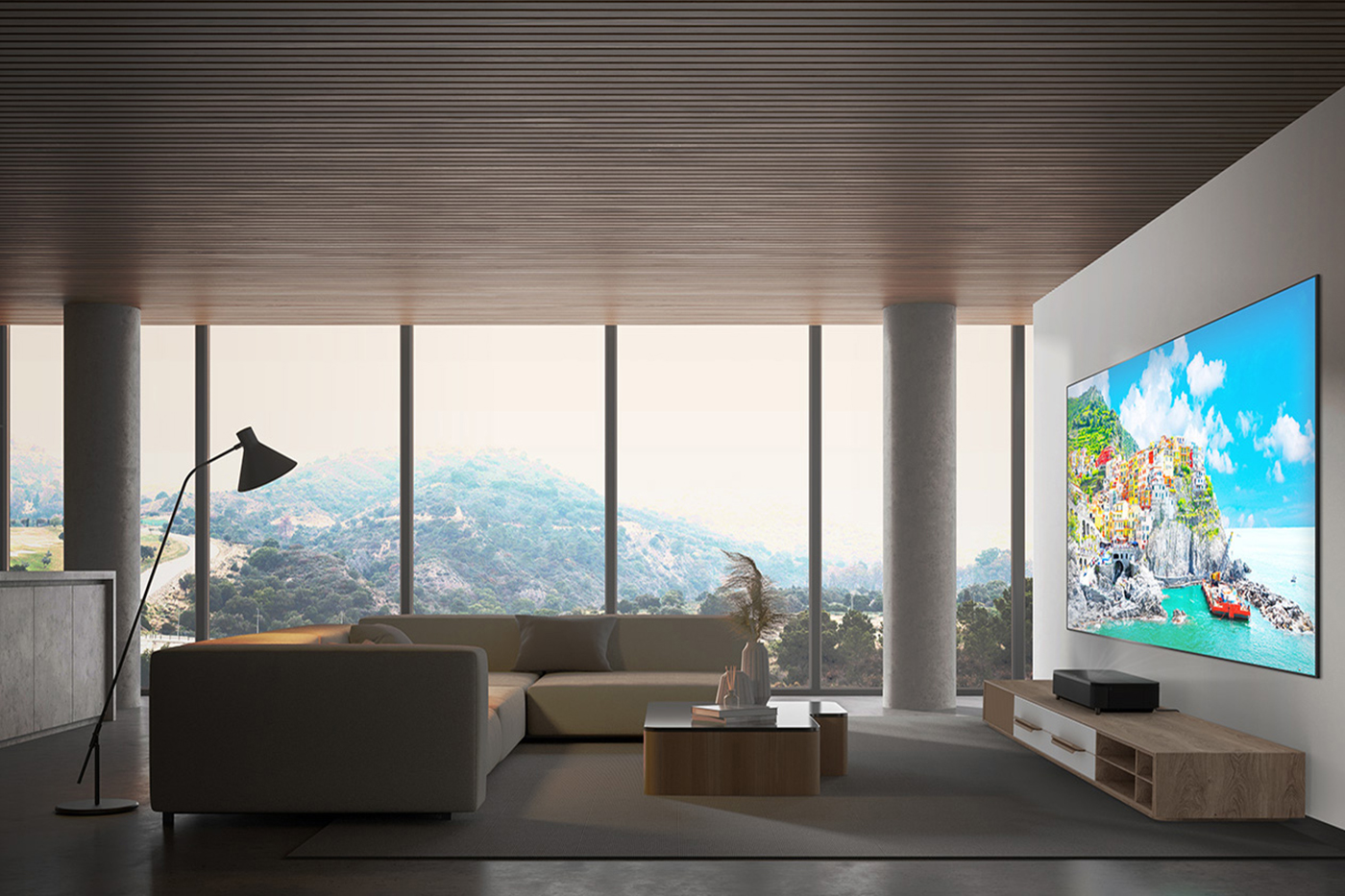

Whether you're watching live sports, gaming on the latest generation of consoles, or streaming your favorite movie, the Epson EpiqVision Ultra EH-LS800B delivers an epic big screen experience that will simply amaze you. With 4K PRO-UHD¹ resolution, up to 150" screen size, Android TV³ function, and sound by YAMAHA, the EH-LS800B opens up a world of possibilities to create the ultimate home cinematic setting. Able to project 100" screen size at just 9.8cm away from the wall to the back of the projector, the EH-LS800B is currently the world's shortest ultra-short throw home projector⁶.

Stunning 4K PRO-UHD¹ picture
Immersive display
New Ultra-Short Throw Laser-Array Technology
Powered by Android TV^TM3
Best-in-Class Colour Brightness
4,000 lumens of colour and white brightness⁵
HDR10 Support

Stores available for product demo:

Atlas Sound and Vision 
Lot T239, Level 3, ATLAS EXPERIENCE, The Gardens, Lingkaran Syed
Putra, Mid Valley City, 59200 Kuala Lumpur, Wilayah Persekutuan
Kuala Lumpur, Malaysia
03-22875080

Hau HiFi Sdn Bhd 
G 15, Lorong Usahaniaga 4, Taman Usahaniaga, 14000 Bukit
Mertajam, Pulau Pinang, Malaysia
04-5374245

Hi Fi Studio Sdn Bhd  
61 & 63, Jalan Dedap 6, Taman Johor Jaya, 81100 Johor Bahru, Johor
Darul Ta'zim, Malaysia
019-4476507

Where to Buy

Find Accessories

Overview

Cutting-edge Ultra Short-Throw Laser Projection

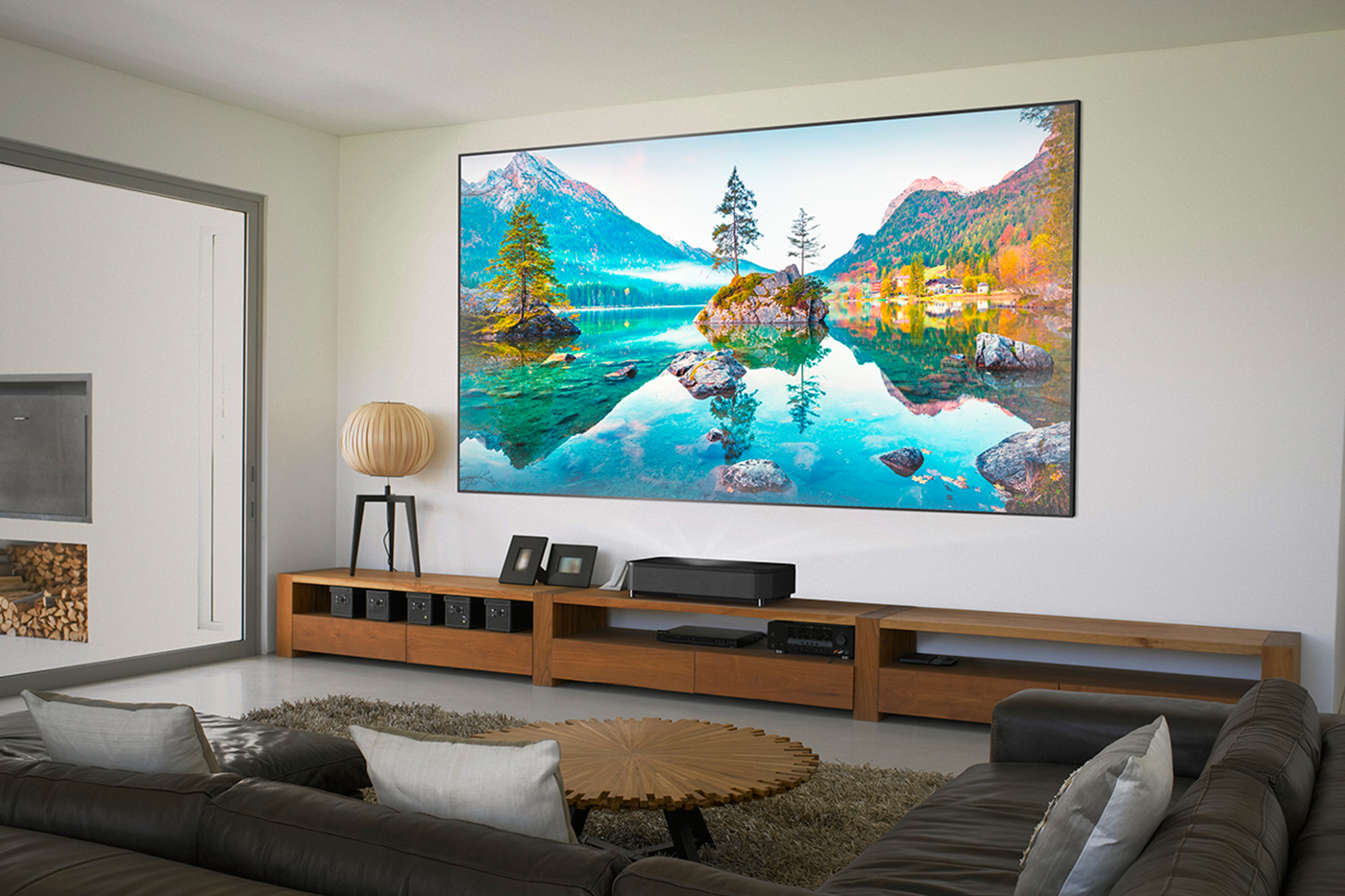

Epson designed an all-new multi-element precision glass ultra short-throw lens technology, allowing for a modern case design that drastically reduces the throw distance. This allows the EpiqVision Ultra EH-LS800B to beautifully sit on normal audio video cabinets and other furniture while displaying a sharp picture of up to 150".

An Exceptional Home Theatre Experience
When the lights are off, the visual performance of the EpiqVision Ultra EH-LS800B paired with the optional ELPSC35 Ambient Light Rejecting Screen is simply epic. The picture quality and colour performance is exceptional especially with HDR content. You may never go to the theatre again. With a modern, thin bezel design, optical enhancement technology, and 16:9 aspect ratio, the ALR screen is designed for 4K content¹. And the result? An incredibly bright, colourful, and sharp picture in virtually any lighting environment.

4K PRO-UHD Resolution¹
Advanced pixel-shifting technology precisely controls three individual high-definition LCD chips to produce an exceptionally sharp 4K experience without sacrificing brightness. This is how the 4K projection experience was meant to be.

Awesome for Gaming and Entertainment

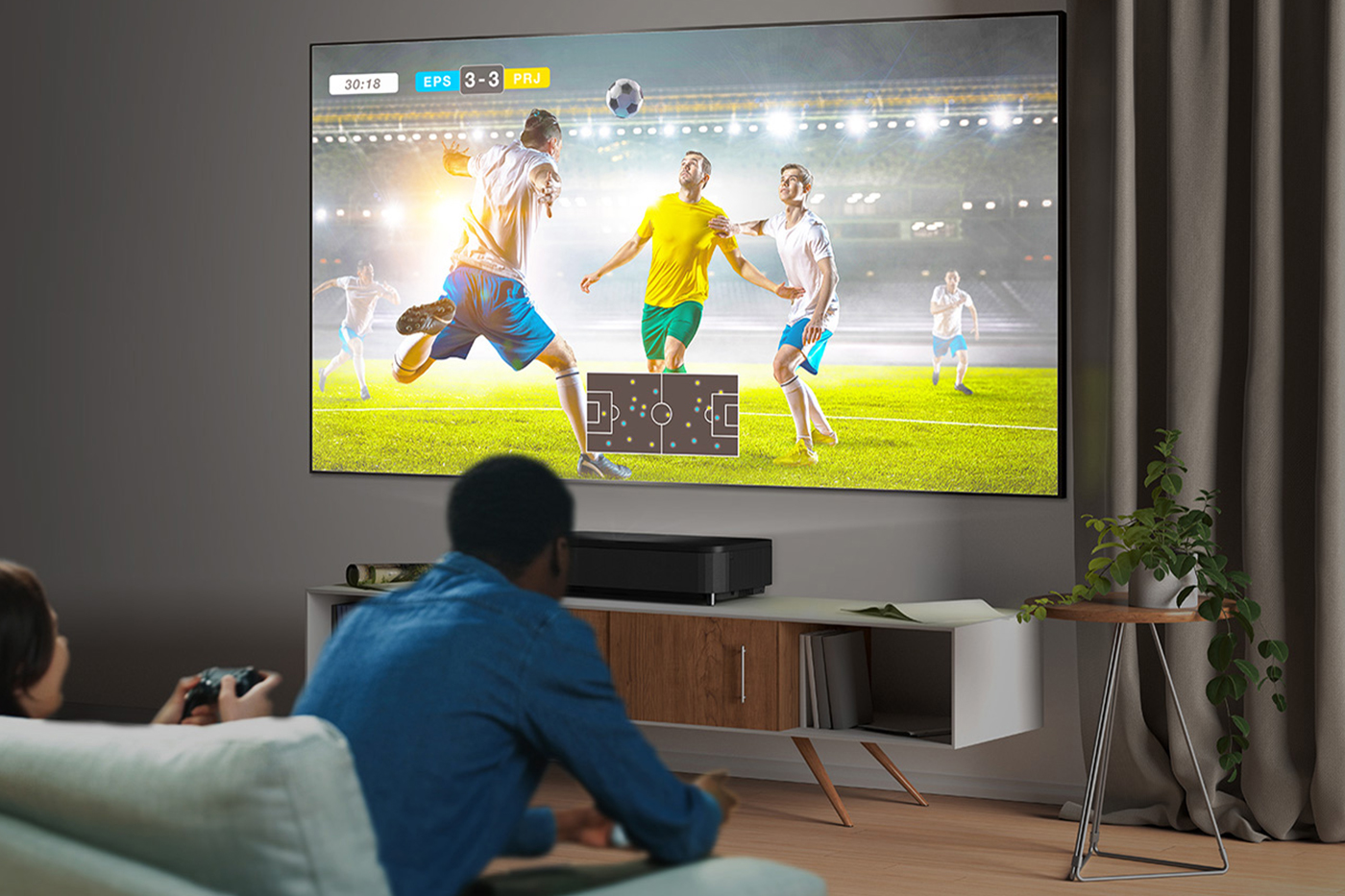

If you're a serious console or PC gamer, the EpiqVision Ultra EH-LS800B paired with the optional ELPSC35 Ambient Light Rejecting Screen will take your gaming experience to a new level of immersion. Imagine gaming on a 100" 4K PRO-UHD¹ with HDR² display with input lag times below 20ms, of up to 1080p/120Hz. The EpiqVision Ultra EH-LS800B comes with an Android TV³ operating system and in-built Chromecast, along with a simple-to-use remote including voice search with built-in Google Assistant. Watch all your favorite streaming channels including YouTube, Disney+ and more. The experience is truly amazing.

The Latest Epson Technology
True 3LCD projection technology takes full advantage of the projector's brightness to produce exceptional colour performance without any distracting rainbowing or other colour brightness⁵ issues seen with other projection technologies.

Advanced digital picture processing converts real-time 10-bit analog-to-digital video processing for smooth tonal transitions, while helping to eliminate banding, blocking, and other compression artifacts from the final visual performance. This powerful processing technology faithfully reproduces the source material the way it was intended to be shown.

When combined with the extreme brightness of 4,000 lumens⁵, HDR content is faithfully reproduced for an exceptional visual performance.

Specifications

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Specifications of Main Parts:

LCD: Size: 0.62” (C2 Fine)Light Source: Type: Laser Diode
Life: 20,000 hours (Normal / Eco)Aspect Ratio: 16:9Resolution: On-Screen (Maximum): 4K*1
Pixel Number: 4.2M Dots (1920 x 1080 x 2)Native Resolution: 1080pProjection Lens: Type: No Optical Zoom / Focus (Manual)
F-Number: 1.8
Focal Length: 2.3 mm
Zoom Ratio: 1 – 2.5 (Digital Zoom)
Throw Ratio (Wide – Tele): 0.16 – 0.40

Brightness:

White Light Output (Normal / Eco): 4,000 lm / 2,000 lmColour Light Output: 4000 lm

Connectivity:

Network: Wireless: Yes (Only for Smart Media Player)Digital Input: HDMI: 3 (HDCP2.3)Audio Output: 1 (Stereo Mini), 1 (S/PDIF)Others: USB Type A: 3 (for USB Storage, RJ45, Camera, Mic, HID) USB3 is for 5V/2A Power Supply, No USB Function
USB Type Mini-B: 1 (for Firmware Update)

Contrast Ratio:

Contrast Ratio: Over 2,500,000:1

Screen Size (Projected Distance):

Zoom : Wide: 80” to 150” [0.28 to 0.54 m]Standard Size: 90” screen 0.32 mZoom : Tele: 32” to 60” [0.28 to 0.54 m]

Image Enhancement:

Image Preset Mode: YesSuper Resolution: YesDetail Enhancement: N/A4K Enhancement: Yes (On/Off)Aspect Mode: Yes (Auto / Full / Zoom)Frame Interpolation: Yes (Off / Low / Normal / High)Noise Reduction: Yes (Except 4K Signal)

Start-Up Period:

Start-Up Period: Less than 8 seconds, Warm-up period: 30 seconds

Operating Temperature:

Operating Temperature: 0 - 40 °C <32 - 104 °F> (0m / 0ft - 2,286m / 7,500ft)
0 - 35 °C <32 - 95 °F> (Over 2,286m / 7,500ft)
(20% - 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude: 0 m to 3,048 m <0 ft to 10,000 ft>
Over 1,500m / 4,921 ft, with High Altitude mode

Power:

Power Consumption: LD On (Normal / Quiet, Extended): 335W / 210W
Standby (Network On / Off): 2.0W / 0.4 WPower Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Internal Speaker(s):

Sound Output: 20W (YAMAHA 2.1ch Satellite x2, Woofer x1)

Weight:

Weight: Approx. 12.3 kg

Air Filter:

Maintenance Cycle: 20,000 H

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H): 341 x 695 x 145 mm

Wireless Specifications (Smart Media Player Function):

Wireless LAN: Wi-Fi 5Supported Speed For Each Mode: IEEE 802.11a (5GHz)³ , IEEE 802.11b (2.4GHz)³, IEEE 802.11g (2.4GHz)³, IEEE 802.11n (2.4GHz and 5GHz)³, IEEE 802.11ac (5GHz)³Bluetooth: Bluetooth 5.0 Class 2 (2.4GHz)Supported OS: Android OSSupported VOD Platform: Android TVVideo Output Resolution: Up to 3,840 x 2,160 60fps at 4:2:0

Streaming Media Player:

Supported Operating System: Android 11Audio: L-PCM, AC-3, DTS

Cool Down Period:

Cool Down Period: Instant Off

Fan Noise:

Fan Noise (Normal / Eco): 32dB / 19dB

See Full Specs Hide Full Specs

Print All Specs

Accessories

Screens

Notes:

¹ 4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification.

² HDR performance available with select third-party devices.

³ Google, Google Play, YouTube, Android TV and other marks are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Availability of services varies by country and language. Requires wireless network connection of 5 Mbps or faster. Some apps require paid subscriptions.

⁴ Requires wireless network connection of 5 Mbps or faster. Some apps require paid subscriptions.

⁵ Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

⁶ As of December 2022. Limited to products which disclose throw ratio officially and have over 2000lm in accordance with ISO21118.
