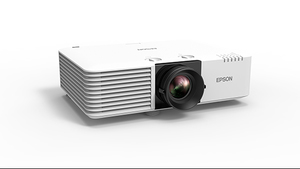

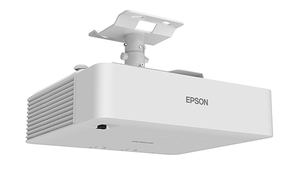

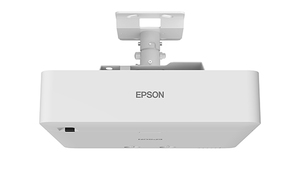

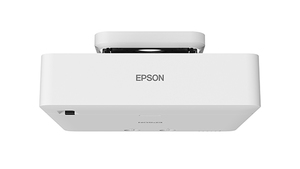

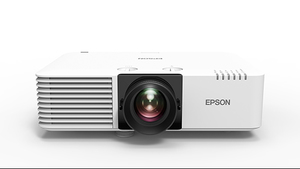

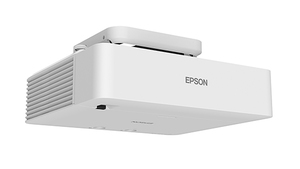

Epson EB-L730U WUXGA 3LCD Laser Projector

A Compact and Robust WUXGA Laser Projector with 7000 Lumens and Built-In Wireless Function for Projecting Sharp and Vivid Images

The EB-L730U laser projector delivers powerful performance for education and business applications. Project amazingly bright, vivid images with 7000 lumens of color and white brightness*2. This robust projector also offers WUXGA resolution. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours*1 and offers virtually maintenance-free operation with no lamps. Plus, it features an optical zoom of up to 1.6x. It also supports split screen function of up to 4 screens enabling better information sharing and wide lens shift for greater flexibility. Besides this, it also comes with flexible settings for image enhancement to further sharpen image resolution to your preferences. It is compatible with the Epson Wireless Presentation System** which enables hassle-free connectivity for better productivity.

      • 7000 lumens of color and white brightness*2
      • 20,000-hour*1 laser light source with no lamps
      • WUXGA resolution
      • Built-in Wireless
      • 1.6x Optical Zoom
      • Screen size of up to 500"



Impressive Brightness that Creates an Impression

Maximum light output of 7,000lm that allows high visibility even under bright lighted environment.



Higher Energy Efficiency & Eco-friendly

New laser diode and optical parts quality improvement ensure improved light source output while reducing electricity consumption and other natural resources during use.



Super Resolution & Detail Enhancement

Customize settings for image enhancement to sharpen image resolution to your preference



Wide Lens Shift

Wide lens shift of V : ±50%, H : ±20% for a great deal of flexibility when installing projectors and avoid image quality deterioration by using keystone correction.

What's in the box:

Power Cable (3m)
Remote Control with 2x AA Battery
User Guide
Cable Cover

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

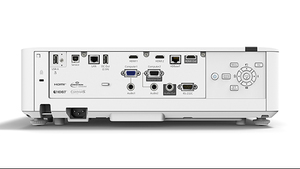

Connectivity:


Network: Wired LAN RJ45 x 1 (100Mbps)
Built-in Wireless: Yes
Optional Wireless: ELPAP11 Analog RGB Input: D-Sub 15Pin: 2Digital Input: HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3) Audio Input: Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1USB Input: USB Type A: 2 (Port1 for PC Free, Firmware Update, Copy OSD Settings; Port2 for 5V/2A power supply only, no USB function)
USB Type B: 1 (For Mouse, Keyboard, Control, Firmware Update)Analog Video Output: D-Sub 15Pin: 1Digital Video Output: HDMI: 1 (HDCP 2.3)

Contrast Ratio:


Contrast Ratio: Over 5,000,000:1

Screen Size (Projected Distance):


Zoom : Wide: 50" - 500" [1.44 - 14.76 m] Zoom : Tele: 50” - 500” [2.35 - 23.84 m]

Geometric Correction:


Vertical/Horizontal Keystone: ±30º / ±30º Projection Orientation: 360º Free

Operating Temperature:


Single Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 40 °C <32 - 104 °F>
20% - 80% Humidity, No CondensationMulti-projection Use: Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 35 °C <32 - 95 °F>
20% - 80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:


Start-Up Period: 8 sec (Epson Logo); Warm-up Period: 30 sec Quick Start-Up: Less than 5 seconds (Display)

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 10W Monaural

Direct Power On/Off:


Direct Power On/Off: Yes

Weight:


Weight: Approx. 8.4kg

Air Filter:


Type: Electrostatic Filter Maintenance Cycle: 20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:


Fan Noise (Normal / Eco): 38dB / 27dB

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 304 x 440 x 122 mm

Brightness:


White Light Output (Normal / Extended): 7,000lm / 4,900lmColour Light Output: 7,000lmLight Output (Center): 7,400lm*

Wireless Specification (In-built wireless LAN and Screen Mirroring):


Supported Speed for Each mode : Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3Supported Mode : Infrastructure, Access Point (Wi-Fi Direct)Supported Security Type: Infrastructure:
OPEN, WPA2/WPA3-PSK
WPA2/WPA3-EAP

Supported EAP type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast

Access Point(Wi-Fi Direct):
WPA2-PSK(AES)

Wireless Specification (Using Optional ELPAP11):


Supported Speed for Each mode : Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3Supported Mode : Access Point (Wi-Fi Direct)Supported Security Type: Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Specifications of Main Parts:


LCD: Size: 0.67" (C2 Fine)
Resolution: WUXGA
Aspect Ratio: 16:10 Light Source: Type: Laser Diode
Life*1: 20,000 hours (Normal) / 30,000 hours (Extended) Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.50 – 1.70
Focal Length: 20 – 31.8 mm
Zoom Ratio: 1.0 - 1.60
Throw Ratio: 1.35 – 2.20 (Wide - Tele)

Power Supply Voltage:


Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Power Consumption (220 - 240V):


Laser Diode ON (Normal / Extended): 345 W / 258W Stand By: (Normal/Eco): 2.0W / 0.3W

Projectors Facets:


Resolution, Projectors Facets: WUXGAContrast Ratio, Projectors Facets: 5,000,000 : 1Inputs & Interfaces, Projectors Facets: RJ-45 & RS-232Brightness Range Lumens, Projectors Facets: 4001Features, Projectors Facets: Edge Blending
Screen Mirroring
WifiLaser / Lamp, Projectors Facets: Laser

Notes:

* This light output value is measured at the center of the screen as a reference value which is equivalent to lumens. There is no official standard for Light Output (Center) measurements and this measurement is made based on the method set by Epson. Please note, each manufacturer measures Light Output (Center) independently according to their own methods and therefore it is recommended to refer to Color Light Output measured in accordance with IDMS 15.4 and White Light Output measured in accordance with ISO 21118 when selecting and comparing projectors.

** Epson Wireless Presentation System needs to be purchased separately.

*1 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environment conditions.

*4 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.
