Laser Printers Epson WorkForce AL-C9500DN

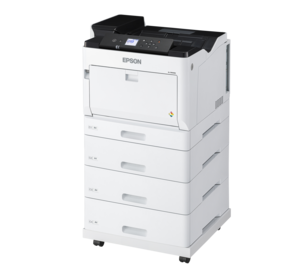

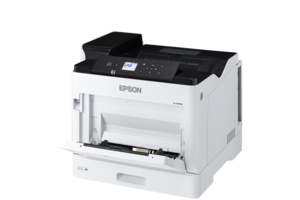

Epson WorkForce AL-C9500DN A3 Colour Laser Printer

A3 Laser Priting with Enhanced Functionalities

With Epson WorkForce AL-C9500DN, superb printing quality and capabilities go hand-in-hand. Expect outstanding sharpness and clarity of business documents and graphics in 1200dpi standard resolution, while enjoying high print speed of up to 35 pages per minute. A monthly duty cycle of 100,000 pages ensures maximum reliability for workgroups, while downtime is minimised by its high toner yield capacity and high paper input capacity. Integrate AL-C9500DN seamlessly into the business, which now supports Epson Connect, Epson Print Admin and remote monitoring. What’s more, the optional additional network card and hard disk will enhance its functionalities to boost productivity for the business.

      • Print speed of up to 35 pages per minute (simplex) / 25 pages per minute (duplex)
      • Print up to A3 with duplex printing
      • Connectivity: Ethernet, USB 3.0
      • Open platform capability
      • Epson Connect: Epson iPrint, Epson Email Print, Remote Print Driver



Boost Productivity
Enjoy fast print speed of up to 35ppm and lower intervention with high toner yield capacity of up to 19,500 pages (black) and 12,300 pages (colour).

Improved Functionalities
Supports Epson Connect, Epson Print Admin and remote monitoring, which comes with a user friendly 2.4" LCD panel. Users can choose to have additional network card and hard disk as options.

Space-saving
The compact design of printer makes it easy to fi t any existing office space.

Printing Technology:


Print Method: A3 Colour Laser PrinterMaximum Print Resolution: 1200 x 1200 dpiProcessor: Dual Core 750 MHzMemory (Min / Max): 3GBMaximum Monthly Duty Cycle*1: Up to 100,000 pagesAutomatic Duplex Printing: Yes (up to A3)Control Panel: 2.4" TFT Colour LCDPrint Speeds: (Black & Colour) Up to 35 ppm (Simplex) / Up to 25 ppm (Duplex)Printer Control Language Emulations: Typeface: ESC/Page-Color, ESC/Page, PCL, PostScript 3 Emulation
Scalable: 16 ESC/Page, 95 PCL5c, 80 PCL6, 80 PS3
Bitmap: 7 ESC/Page, 5 PCL5c, 1 PCL6

Print Speed:


First Page Out Time from Ready Mode (Black / Colour): Simplex: 7.9 sec or less / 9.1 sec or less
Duplex: 13.3 sec or less / 14.5 sec or lessWarm Up Time: 13.5 sec (from power on to ready)

Paper Handling:


Number of Paper Trays: 2 (Paper Cassettes: 1, MP Tray: 1)Standard Paper Input Capacity: Up to 405 sheets (155 sheets MP Tray, 250 sheets Standard Cassette)Maximum Paper Input Capacity: Up to 2,055 sheets (155 sheets MP Tray + 250 sheets Standard Cassette + 3x 550 sheets Optional Cassettes)Maximum Output Capacity: Up to 250 sheets (face down)Support Paper Size: Paper Cassettes: A5, A4(SEF,LEF), A3, B5, B4, Letter(SEF,LEF), Legal, US B, Custom: 210 x 148 mm to 297 x 431.8 mm
MP Tray: A6, A5, A4(SEF,LEF), A3, B5, B4, Half Letter, Executive, 8 x 10.5 in, 8.27 x 13 in, Letter (SEF,LEF), 8.5 x 13 in, Legal, US B, Monarch Envelopes: #10, DL, C6, C5, B5, Custom: 75 x 98 mm to 297 x 431.8 mmMaximum Paper Size: 297 x 431.8 mmPaper Weight: 60 - 216 g/m2 (Optional Cassettes: 60 - 175 g/m2)Paper Types: Plain Paper / Letterhead / Recycled / Colour / Preprinted / Semi-thick / Thick Paper1 / Thick Paper2 / Labels / Coated / Envelope / Special

Connectivity:


USB Interface: USB 3.0Network: Ethernet (1000Base-T/100Base-TX/10Base-T)Network Protocol: TCP/IPv4, TCP/IPv6, IPSec, LPD, IPP, PORT9100, WSDNetwork Management Protocols: SNMP, HTTP, DHCP, BOOTP, APIPA, PING, DDNS, mDNS, SNTP, SLP, WSD, LLTDSecurity Features: Limit Access Function, PIN No. Certifi cation, IP Address Filtering, Panel Admin Mode

Mobile and Cloud Solutions:


Epson Connect Features: Epson iPrint, Epson Email Print, Remote Print DriverOther Mobile Solutions: Apple AirPrint, Mopria Print Service

Supported OS and Applications:


Supported OS: Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10
Windows Server 2003 / 2008 / 2012 / 2016 / 2019
Mac OS X 10.6.8 or later
Citrix: XenApp/XenDesktop 7.6, XenApp 6.5

Dimensions and Weight:


Dimensions (W x D x H): 555 x 538 x 453 mm
Full Options: 555 x 538 x 956 mmWeight: 46kg / 38.6lb
Full Options: 79.8kg / 175.93lb

Options:

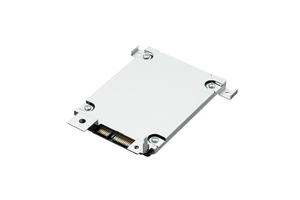

Options: HDD (320GB) - C12C934441

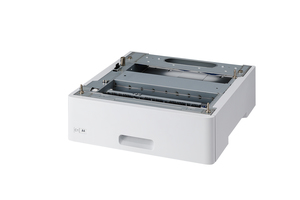

Epson Print Admin - 7110574 550-Sheet Paper Cassette Unit: C12C934401
Paper Capacity: Up to 550 sheets (80g/m2)
Paper Weight: 60 - 175 g/m2
Paper Type: A5, A4(SEF,LEF), A3, B5, B4, Letter(SEF,LEF), Legal, US B, Custom: 210 x 148 mm to 297 x 431.8 mm
Dimensions & Weight: 500 x 524 x 164 mm, 9.6kg Printer Stand: C12C932091
Dimensions & Weight: 512 x 518 x 109 mm, 5.1kgEpsonNet 10/100/1000Base Tx Int.: C12C934471
Network: 1000BASE-T/100BASE-TX/10BASE-T

Environmental Conditions:


Temperature: Operation mode: 5 ~ 32 ℃ / Storage: 0 ~ 35 ℃Humidity: Operation mode: 15 ~ 85% RH / Storage: 15 ~ 80% RHSound Pressure*: Printing mode: 53dB / Standby mode: 25dBSound Power: Printing mode: 7.13B / Standby mode: 5.3B

Consumables:


Standard Capacity Black: 10,000 pages - C13S110124Standard Capacity Cyan: 6,600 pages - C13S110125Standard Capacity Magenta: 6,600 pages - C13S110126Standard Capacity Yellow: 6,600 pages - C13S110127High Capacity Black: 19,500 pages - C13S110128High Capacity Cyan: 12,300 pages - C13S110129High Capacity Magenta: 12,300 pages - C13S110130High Capacity Yellow: 12,300 pages - C13S110131Photoconductor Black: 24,000 pages - C13S051210Photoconductor Colour*3: 24,000 pages - C13S051209Waste Toner Bottle / Collector: 24,000 pages - C13S050610

Electrical Specifications:


Rated Voltage: AC 220 - 240 VRated Frequency: 50 - 60 HzElectric Power Consumption: Operating: 439W (Black) / 526W (Colour)
Standby: 65W
Pre Heat: 43W
Sleep: 0.71W
Power Off: 0W
Typical Electricity Consumption (TEC) Number: 0.48kWh

Notes:

*1 According to ISO/IEC 19798 yield measurements.

*2 The number of printed pages on A4 in colour / mono at the 5% image occupation rate. Yield may vary depending on printing variables and conditions including toner and page coverage, continuous or intermittent.

*3 Common photoconductor among Yellow, Magenta and Cyan. 3pcs of photoconductor units are required.

* Initial toner cartridges with 2,000 page yield for each colour is bundled.
