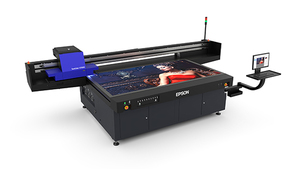

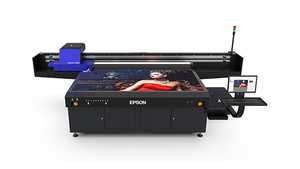

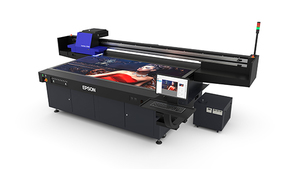

SureColor SC-V7000 76”, UV Flatbed Signage Printer

Genuine Total Solution with Stunning Print Quality

Epson’s first UV flatbed large format printer, SC-V7000, brings forth an exceptional print in stunning colours and vivid reds across a flexible range of media of up to 80mm thick. Along with an intuitive and user-friendly operating system, the printer improves productivity, safety, and usability. Using Epson’s patented PrecisionCore technology, the UV flatbed printer produces impressive colour-consistent, high quality prints suitable for both indoor and outdoor uses.

      • Epson’s first UV flatbed signage printer
      • Designed for printing on rigid substrates*
      • Wide variety of application for substrates of up to 80mm thick
      • 10 colour UltraChrome UV ink for striking prints with smooth gradation
      • Greenguard Gold certified


Suitable for businesses big and small, Epson’s SC-V7000 UV flatbed large format printer produces accurate, colour consistent, and scratch-resistant prints in stunning colours including stimulating reds. Creating high-value signages and striking POS displays for outdoors, indoors, and wall applications, the large format UV printer prints on a wide variety of substrates including canvas, vinyl, aluminium composite boards, textiles, and more.

Stunning Prints in Every Environment
The SC-V7000 allows the for the versatility of various print media to be used, by automatic detection and adjustment to accommodate media of up to 80mm thick, thanks to its highly accurate substrate control. It prints directly onto foam board, poster board, real estate signage, and on a variety of materials, including wood, metal, and acrylic.


Impeccable Print Quality

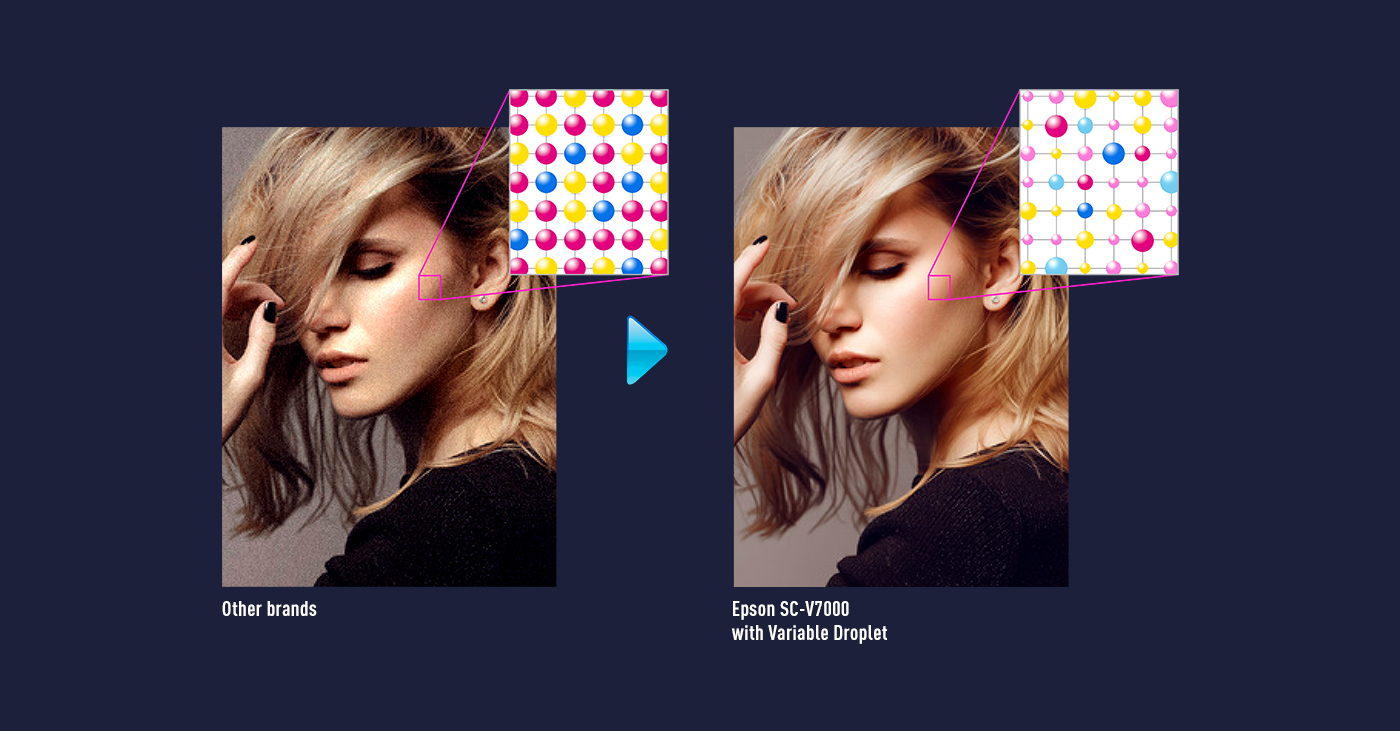

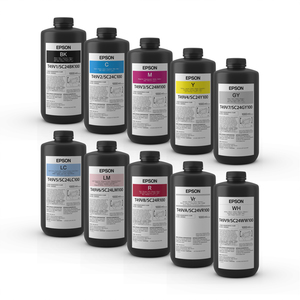

With up to 10 colour ink sets that provide low graininess and banding, the UV flatbed printer provides a highly vivid and consistent prints with its striking reds and stunning colours. Epson’s UV inks also expand the possibilities for businesses to print onto traditional signage materials, as well as a wider variety of substrates such as canvas, textiles, and film. With the newly developed eight colours, white, and varnish inks, businesses can now ensure colour-consistent and vivid prints with SC-V7000.

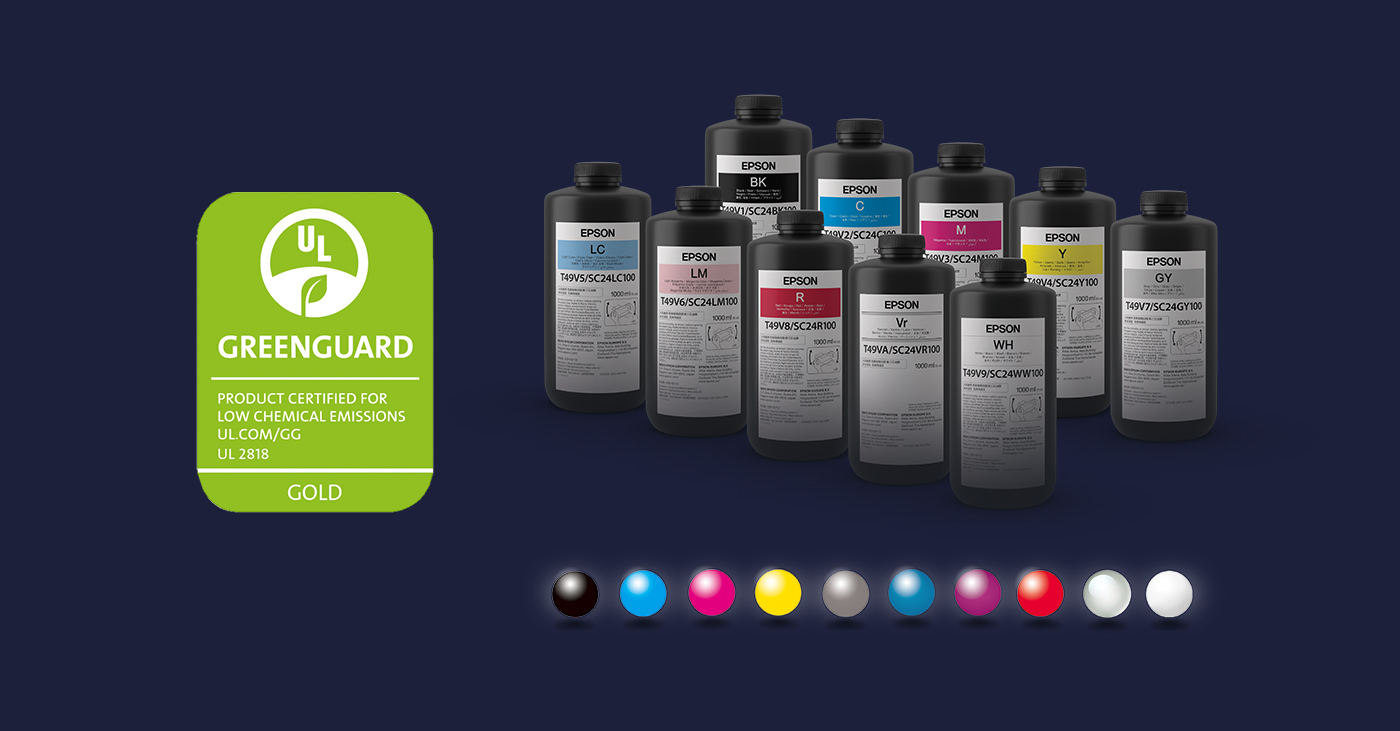

Eco-Conscious Sustainable Inks
In line with Epson’s focus on sustainability, the UV inks conform to industrial standards, with international safety accreditation such as the Greenguard Gold certification.

Epson’s SC-V7000 gives businesses a competitive edge thanks to its high-speed printing with a maximum print area of 2.5 metres by 1.25 metres. Without losing productivity, the unique printhead layout enables simultaneous high-speed printing, providing enhanced efficiency for every print job.

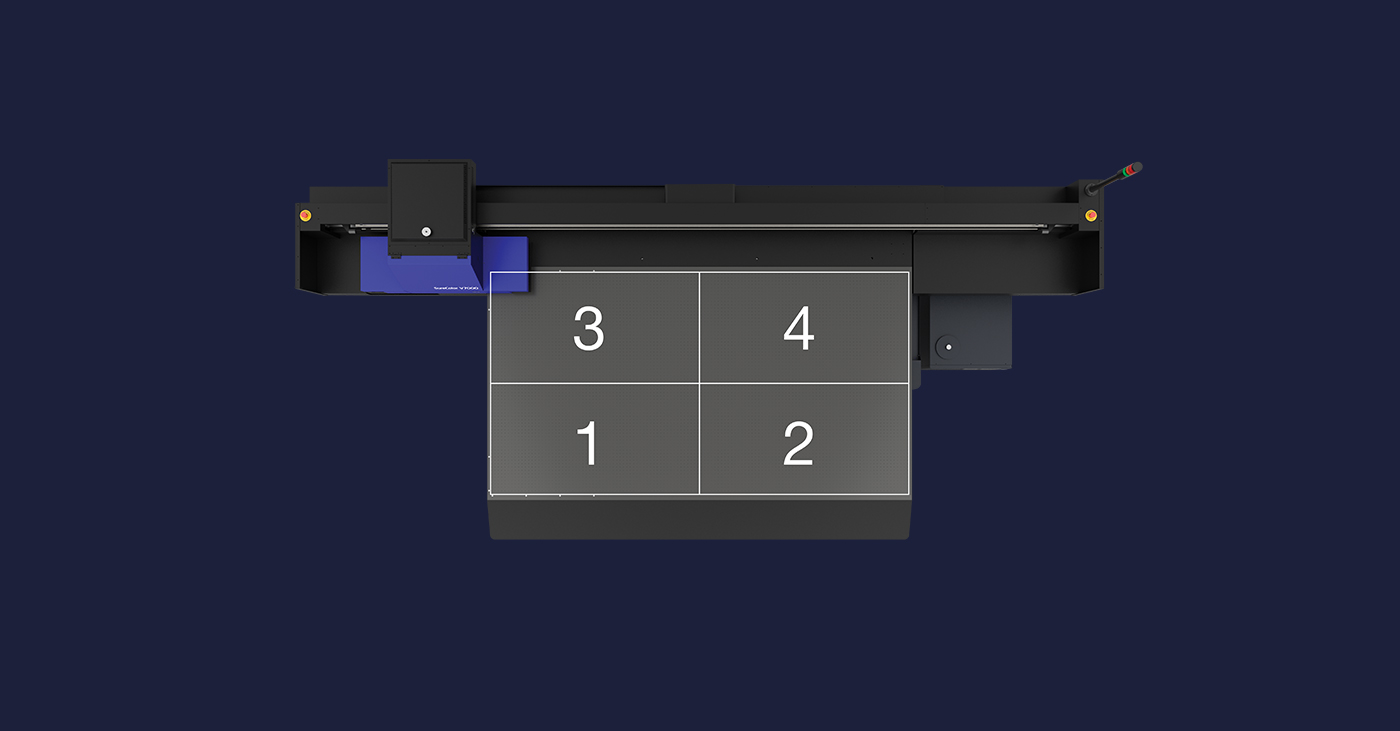

Vacuum Zones
With four vacuum zones, the flatbed printer enables businesses to print on a variety of media including lightweight materials such as styrofoam boards.

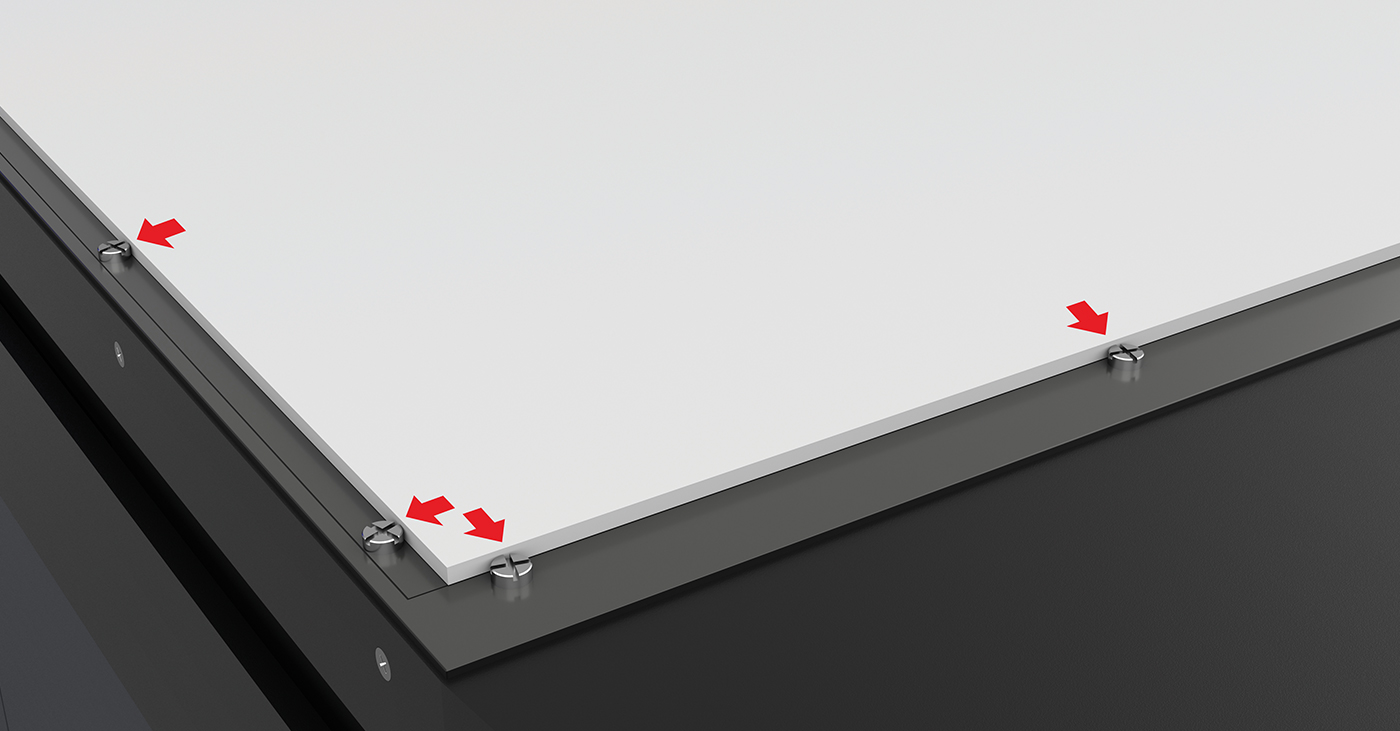

Unique Layout Pin
With layout pin positions on the printer, businesses can easily ensure media position is set accurately, reducing any human errors in production.

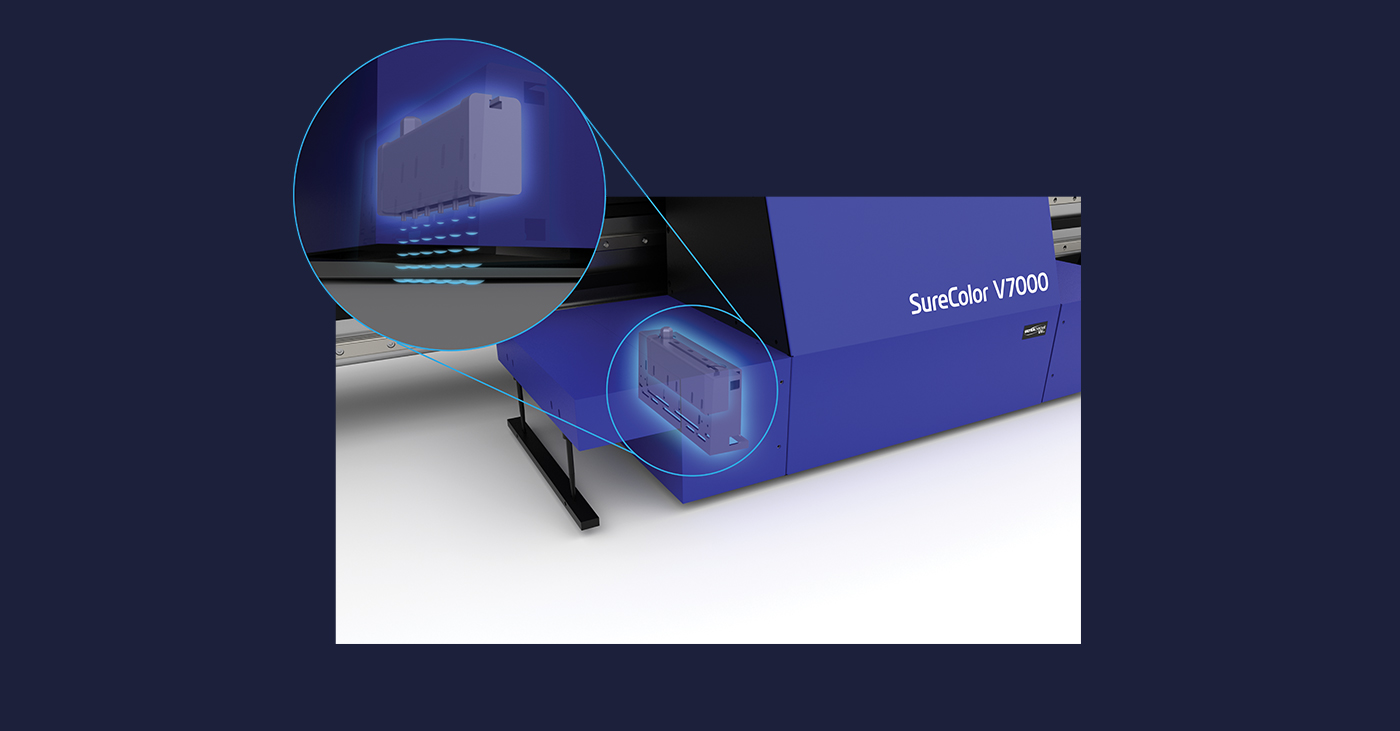

Integrated Ionizer
The inbuilt integrated ionizer helps to reduce static electricity, which in turn minimises dust from adhering to the surface of the print media. This will ensure stable image quality and ink jetting characteristics in end products.

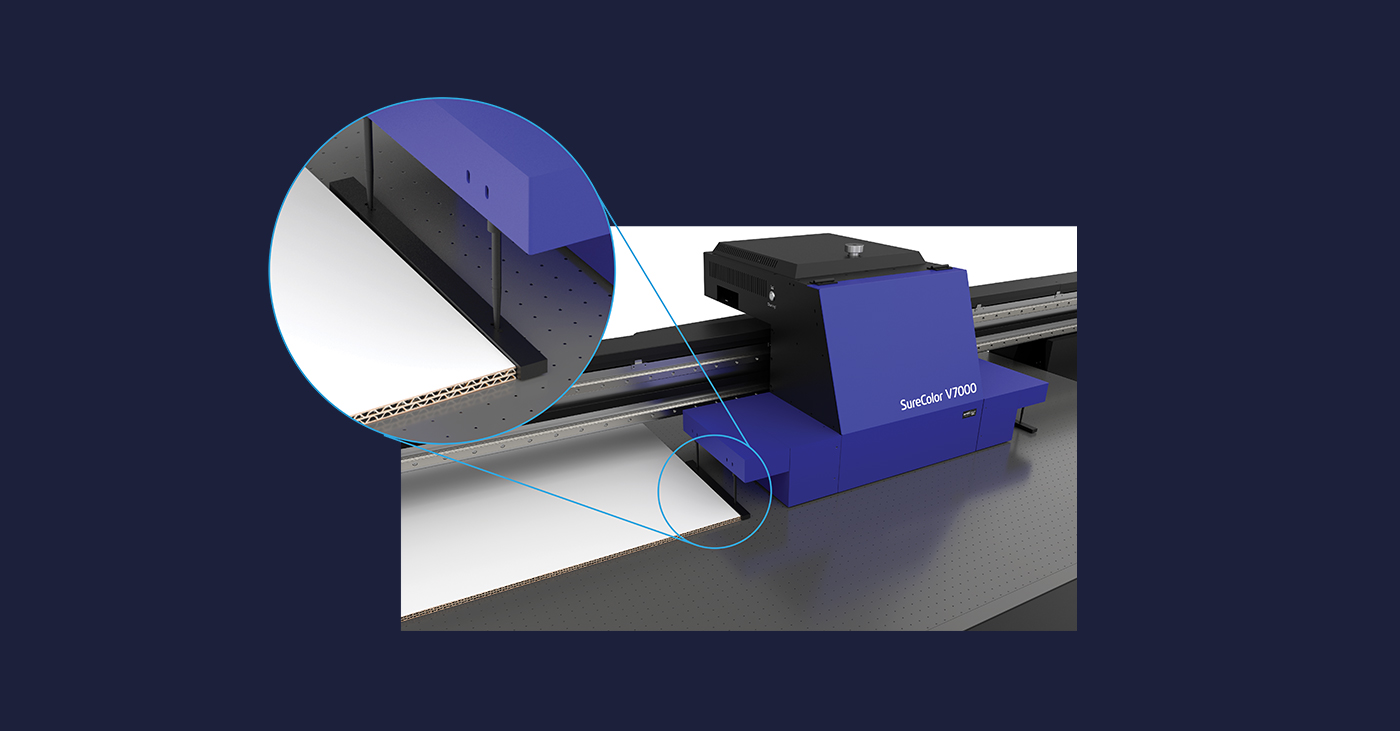

Media Thickness Detection
Businesses can now rely on the automatic measurement of media thickness function to accurately pinpoint media height, reducing time spent on operation, and focus on other important tasks such as the pre-press and file preparation processes.

Jam Detection
The in-built jam detection sensor helps businesses to prevent a head crash, even when a wrong media thickness was set.

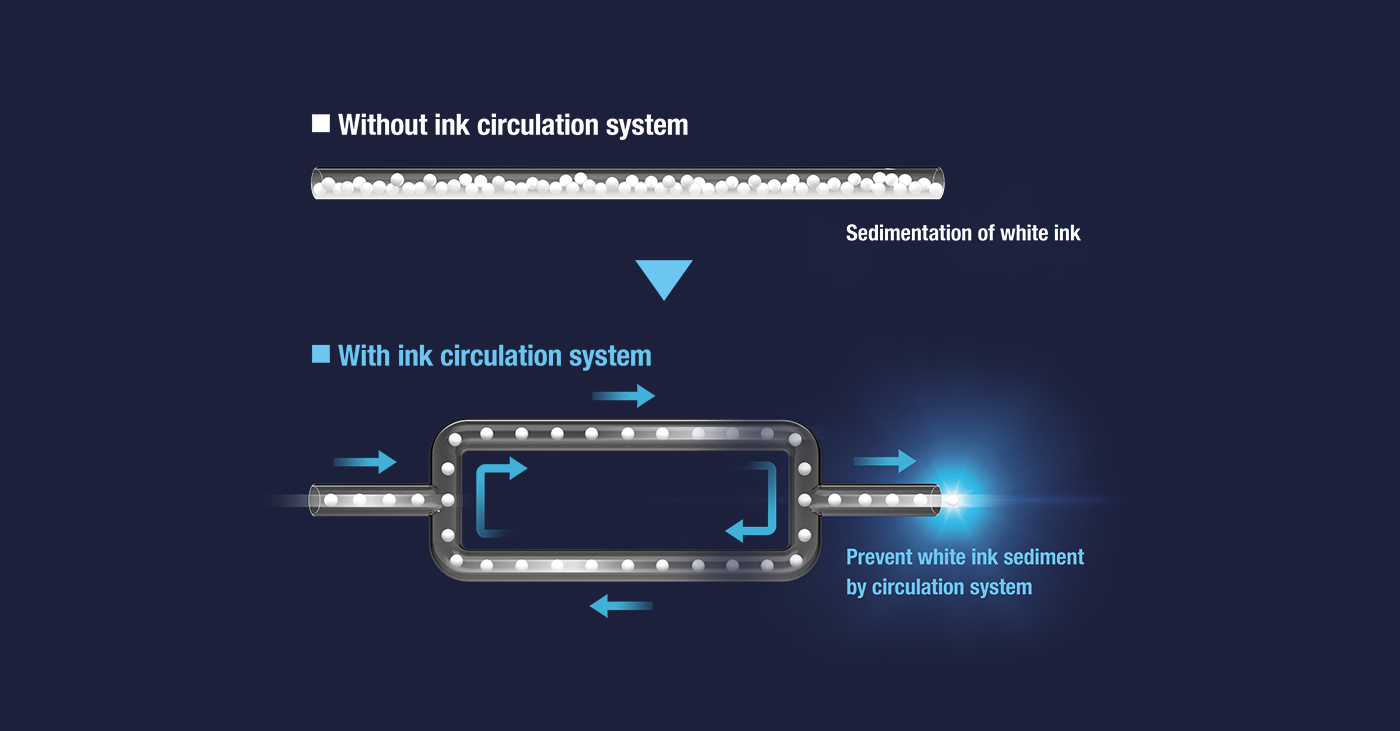

White Ink Circulation
The white ink circulation system reduces ink waste by circulating and stirring white ink, preventing ink sedimentation, and bringing extra savings for businesses.

Epson Cloud Solution PORT
Designed with simplicity and security in mind, the Epson Cloud Solution PORT provides a live view of your printer fleet production**, equipment utilisation, and service information to better manage efficiency and optimise your Epson printing workflow.

Epson’s SC-V7000 reinvents what large format printers can offer, allowing businesses to print directly on a wide variety of substrates including vinyl, textile, canvas, film, and rigid substrates*, at 80mm max media thickness. Allowing print on aluminium composite boards, styrofoam boards, the possibilities to create with SC-V7000 is limitless.

What's in the box:

  • Printer
  • Initial Ink Set
  • Power Cable
  • Setup Guide
  • Software CD-ROM


Printing Technology: MicroPiezo Inkjet Technology
Variable-Sized Droplet TechnologyPrint Head: MicroPiezo PrintheadNozzle Configuration: 11,520 nozzles (180 nozzles x 8 lines x 8 head)Maximum Print Resolution: 720 x 1,440 dpiMinimum Ink Droplet Size: 3.5 pl


Ink Type: UV Curable InkColours: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Gray, Red, White, VarnishInk Capacity: 1,000 mlInk Brand Name: Epson UltraChrome UV InkInk Case: Ink Bottle

Paper Handling:

Maximum Printing Area: Max. 2,500 x 1,250 mmMaximum Media Size: Max. 2,500 x 1,250 mmMaximum Media Thickness: Max. 80 mmMaximum Media Weight: Max. 50 kg/m2 (non-concentrated)

Recommended System Requirements:

Win PC System Requirement: Windows 7 x64 SP1, Vista x64, 8 x64, 10 x64 CPU: Core i7 or later Memory: 8GB or more free space Storage: 10GB or more free space Communication Interface: Super-Speed USB (Type-A) Monitor: 1920x1080 or more

Dimensions and Weight:

Dimensions (W x D x H): 4,635 x 2,768 x 1,730 mmWeight: Approx. 1,370 kg (without ink cartridges)

Electrical Specifications:

Rated Current: 29AElectric Power Consumption: Operating: Approx. 4.8kWVoltage: AC 200V, 208V, 220V, 230V, 240V. 50/60HzVolt-Ampere: 5.7kVA

Utility Software:

Utility Software (Bundled in CD): Windows – Epson Edge Print PROUtility Software (Web delivery): Windows – UV Flatbed Controller, Epson Control Dashboard, Epson Device Admin

Environmental Conditions:

Temperature: Operating: 15°C to – 30°CHumidity: Operating: 20% – 80% (no condensation)Sound Pressure: Approx. 70db(A) *4

Print Specification:

Print Speed: Colour High Speed: 360 x 720 dpi *1Curing Method: LED-UV type *2


Interface: Super-Speed USB (Type-B)


* Some materials require pre-treatment.

**All features of this system require an active internet connection and use of a supported browser.

*1 Refer to Print Speed sheet for print condition.

*2 Include water cooler. Equipment contains fluorinated greenhouse gas. Type of F-Gas: R410A. Total F-Gas mass (kg): 0.5. Total eq (CO2-kG): 1,045 (Euro area only).

*3 For utility software, please refer to system requirement for each utility software.

*4 68.9db(A). Operation condition: Production mode, suction is On. Method: According to clause of Machinery Directive 2006/42/EC.
