For Work Printers Large Format Epson SureColor SC-R5030L

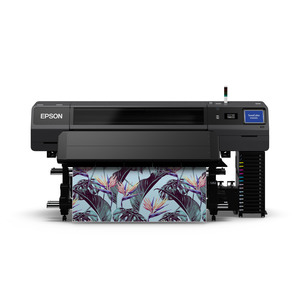

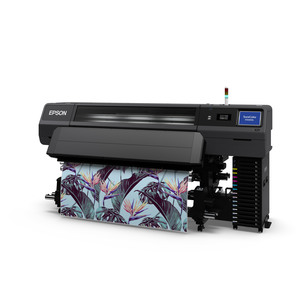

Epson SureColor SC-R5030L Resin Ink Signage Printer

GOING GREEN WITH VIBRANT PRINTS.

Thanks to Epson’s UltraChrome RS ink, the SC-R5030L printer offer wide substrate support, making them the ideal choice for signages, pro-graphics printers, design agencies, wallpapers, canvases and commercial print houses. The odourless water-based ink enables the use of printed applications in sensitive environments such as schools, hospitals and hotels, as well as outdoor applications that require extreme durability.

  • Bulk Ink System with 2 sets of 3L ink packs for higher print volume run
  • Epson’s first Large Format Printer with eco-friendly Resin printing technology
  • High quality printing with colour consistency and stable printing
  • Enhanced usability with down time reduction and continuous printing
  • Top class reliability with high media feeding accuracy



Commitment to Eco-friendly Printing
Epson’s resin inks have an advanced ink chemistry. Eco-friendly and odourless, the water-based resin ink can be used on coated and uncoated substrates. Its quick-drying property allow for instant lamination and has a high scratch resistance. The introduction of resin ink improves the performance of both typical and high-value print signage applications, resulting in superior print quality.

The Benefits of UltraChrome Resin Ink
Epson's Water Based Resin Inks are Eco Friendly and have quick drying properties, which allows for instant lamination. In addition, it also has high scratch durability.

Print Across Wider Applications
Media versatility is important in the print industry, which is why Epson has incorporated a tension control mechanism to provide the perfect balance between tension and print performance. Experience quality printing for various applications, from wallpapers and canvases, to POS displays and vehicle wraps.

  • Dries Quickly with High Scratch Durability
    Due to the quick-drying property of our resin inks, instant lamination is now possible to reduce turnaround time.

  • UltraChrome RS Ink
    Odourless with low VOC, Epson’s UltraChrome RS Inks enable reproduction of rich and vibrant colours across different applications as a result of its Optimiser Ink.

Vibrant and Astounding Prints
Image quality and aesthetics are key when it comes to print output. Spruce up your environment with nothing less than dynamic and captivating images that will bring any space to life.

  • Amazing Colour Consistency
    Three independent heating stations, (preheat / platen heat / post-cure heat) paired with prolonged printhead life helps to ensure colour uniformity, adept media handling and colour consistency.

  • Optimiser Printing Method
    By enabling separated printing between colour ink and optimiser, graininess, unevenness and bleeding are prevented to produce superior image quality.

Durability and Reliability
Reduce downtime, maximise uptime and improve productivity as Epson’s SureColor SC-R5030L printer allow for increased usage while providing longer shelf life.

  • Ultrasonic Detector and NVT
    Epson’s SureColor SC-R5030L features an Ultrasonic Detector and NVT feature which prevents scratching of printheads and missing of nozzles. NVT also automatically detects nozzle condition and adjusts print quality should the nozzle be clogged.

  • Anti-dust Design
    Built with an air circulation system and media cleaner. The air circulation system reduces printer failure by preventing dust and ink mist attaching on the sensors or driving mechanisms while the media cleaner removes more than 90% of fluff or dust on media surface.

Ease of Use
To empower continuous printing for enhanced efficiency, Epson’s SureColor SC-R5030L printer is developed with intuitive functions that are easy for users to operate.

  • User Replaceable Head*
    Printers are designed for printheads to be easily replaceable, decreasing any potentiality of downtime.

  • Hot Swap Function
    The hot swap function automatically switches and activates another ink cartridge for uninterrupted printing. This makes it especially useful in the event of unattended printing.

  • Bulk Ink supply systemWith a high capacity ink supply unit, continuous printing is enabled while empty cartridge wastage is reduced.

What's in the box:

Printer unit x 1, Bulk Ink Solution x 1, Media Edge Plate x 2, Waste Ink Bottle x 2, Document Pack x 1, USB Cable x 1, Media Cleaner Brush x 1, Thermal Sheet x 1, Clean Room Wiper x 1, Cleaning Kit x 1, Epson Edge Print x 1, AC power cable for Bulk Ink Solution x 1, AC power cable for Printer unit x 2, AC power cable for Curing heater x 2

Printing:


Printing Technology: PrecisionCore inkjet technologyMaximum Print Resolution: 1,200 x 2,400 dpi
With 600 x 600 dpi 8 Half Tone layersPrint Speed: Adhesive Vinyl, Paper/Other: 9pass Production 15.1m2/h
Banner, Non-woven Wallpaper: 6pass Production 21.0m2/h
Textile: 14pass Production 9.5m2/h
Film: 26pass Production 5.2m2/h

Ink:


Ink Type: Resin inkColours: Cyan, Magenta, Yellow, Black, Light Cyan, Light MagentaInk Capacity: 1,500ml x 2

Roll Media Handling:


Maximum Roll Diameter: Max 250mmMaximum Roll Weight: Max 45kgMedia Width: 300 - 1,626mm (64inch)Media Thickness: Max 1mmLeft / Right Margins: Side Margin: 5mm Both Sides (10mm when using Media Edge Plates)Maximum Reel Diameter: Max 200mmMaximum Reel Weight: Max 45kg

General:


Dimensions: Printing: 2,949mm x 1,045mm x 1,774mm (W x D x H)
Stowed: 2,949mm x 1,045mm x 1,605mm (W x D x H)System Requirements: Win PC: EPSON Edge Print- OS : Windows 7x64 SP1, 8x64, 8.1 x 64, 10x64 - CPU : Multicore processor (Recommend : 3.0GHz or later) - Memory : 8GB or more free space - Storage : 50GB or more free space - Monitor : 1280×1024 or more. Epson Edge dashboard - OS : Windows 7x32/64 SP1, 8 x 32/64, 8.1x32/64, 10x3 2/64 - CPU : Multicore processor 3.0GHz (Recommend : Intel Core i5 3.4GHz or later) - Memory : 4GB or more free space - Storage : 2GB or more free space - Monitor : 1280×1024 or more
Mac: EPSON Edge dashboard - OS : Mac OS X(10.7) or later CPU : Multicore processor 3.0GHz (Recommend : Intel Core i5 3.4GHz or later) Memory : 4GB or more free space Storage : 2GB or more free space Monitor : 1280×1024 or moreWeight: Approx.449kgSafety Approvals: Safety: USA and Canada (NRTL Certified), EU (Low Voltage Directive), Customs Union (Russia, Belarus, Kazakhstan ) (EAC), Morocco, Ukraine, India (HSE), Singapore (PSB), Hong Kong Argentina (S-mark), Mexico (NOM), China (CCC)
Electromagnetic: USA (FCC), Canada (ICES), EU (EMC Directive), Customs Union (Russia, Belarus, Kazakhstan) (EAC), Morocco, Ukraine, Australia (RCM), Japan (VCCI), Korea (KC), China (CCC)
Environmental: WEEE, RoHS, REACH

Printer Details:


Printer Language: ESC/P rasterControl Panel: 4.3 inch touch screenOptions: Media Edge Plate, Media Spacer, Thermal Sheet, Media Cleaner Brush, Epson Edge Print, Epson Edge Print PROInterfaces: USB (Hi-Speed USB), 100BASE-TX/1000BASE-T

Power:


Rated Voltage: AC 200-240V (50/60Hz) x 2Power Consumption: Ready: Approx. 220W
Power Off: Approx. 1.1W
Sleep: Approx. 46W
Operating: Approx. 4.6kWRated Current: 16A x 2

Paper Handling:


Media Handling: Roll Paper: One Roll, Rear-loadingAuto Take Up: StandardSupported Media Sizes: Roll Paper Width: 11.8" (300mm) to 64" (1626mm)Media Width: 300 - 1625.6mmPaper Feed Method: Friction FeedPrint Margin: Max. 1615.6mm
Side Margin: 5mm Both Sides (10mm when using Media Holding Plates)

Memory:


Main: 2GB

Acoustic Noise Level:


Sound Pressure Level: Approx. 66.1dB

Environmental Characteristics:


Temperature: Operating: 15°C to 30°CHumidity: Operating: 20 - 80% (no condensation)

Utility Software:


Utility Software (Bundled in CD): Windows - Installer Package - Communication Driver - Software Updater - EpsonNet Setup - Epson Edge Dashboard - EpsonNet Print - EpsonNet Config SE - Manuals Launcher - Epson Edge PrintUtility Software (Web delivery): Windows - Installer Package - Communication Driver - Software Updater - EpsonNet Setup - EpsonNet Print - EpsonNet Config SE - Epson Edge Dashboard - LFP Accounting Tool - Manuals Launcher Macintosh - Installer Package - Software Updater - Epson Edge Dashboard - Manuals Launcher

Notes:

*User Replaceable Printhead applies after the first year as the R5030/R5030L comes with a 1 year standard warranty, which includes one printhead
