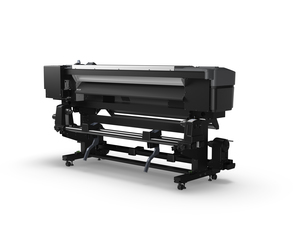

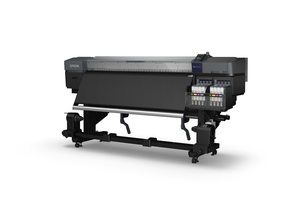

Epson SureColor SC-F9430H Fluorescent Dye-Sublimation Textile Production Printer

Product Models displayed on this website may be available in certain regions only.

Trendsetting Performance with Affordable and Quality Prints

The SureColor SC-F9430H offers fluorescent brightness and colour density like never before, giving life to print applications such as fabric flags, fast fashion, and home furnishings such as curtains and cushions.

      • Fluorescent ink for vibrant, outstanding prints
      • 64-inch high performance roll-to-roll dye-sublimation printer
      • High performance with dual printheads
      • Advanced Precision Media Feeding System
      • UltraChrome DS ink and Precision Dot Technology deliver impeccable prints
      • Ideal for medium to large-volume roll-to-roll custom fabric, textile and soft signage



New Dye-Sub Fluorescent Ink
Epson’s new genuine fluorescent dye-sub ink encompasses both fluorescent yellow fluorescent pink ink to give you bright, consistent and high quality vivid prints on many types of fabric.

Epson Edge Print
Achieve quality prints on fabric with Epson’s first genuine dye-sublimation ink solutions using the Epson Edge Print software.

Ease of Maintenance
Simply scan a QR code located on the printer and you will have a video instruction on the printer’s maintenance process.

High Quality Prints
With Epson’s PrecisionDot Technology, our printers can produce high print quality with better colour transition, less banding, and less graininess.

Fluorescent for Vibrantly Outstanding Prints
With the introduction of a genuine fluorescent solution, Epson’s SC-F9430H offers fluorescent brightness and colour density like never before, giving life to print applications such as fabric flags, fast fashion, and home furnishings such as curtains and cushions.

Developed primarily for fast and high-volume printing of textiles, the Epson SC-F9430H also offers businesses the option of printing with two genuine fluorescent ink solutions (yellow and pink), bringing bright, vivid colours. The SC-F9430H is an evolution of trusted Epson print technology and provides enhanced quality with even greater productivity and reliability.

Printing:


Printing Technology: Dual PrecisionCore™ TFP® PrintheadNozzle Configuration: 360 nozzles x 5 channels x 2 headMaximum Print Resolution: 720 x 1440 dpiPrint Speed: Production (2 pass): Up to 62 m2/h (360 x 720 dpi)
Production (4 pass): Up to 32.1 m2/h (720 x 720 dpi)
Production (6 pass): Up to 21.9 m2/h (720 x 720 dpi)
Production (8 pass): Up to 15.8 m2/h (720 x 720 dpi)Printer Language: (Standard) ESC/P raster

Ink:


Ink Type: Epson UltraChrome™ DS6 dye-sublimation inkInk Capacity: Cyan, Magenta, Yellow, High Density Black: 1100ml ink pouch
Fluorescent Yellow, Fluorescent Pink: 1000ml ink pouchInk Configuration: Cyan, Magenta, Yellow, High Density Black, Fluorescent Yellow, Fluorescent Pink

Printable Area and Accuracy:


Maximum Paper Width: 1625.6 mm (64")Minimum Paper Width: 300.0 mm (11.8")Maximum Printable Width: 1615.6 mm; Side Margin: 5mm both sides, 10mm with media holding guides

General:


Temperature: Operating: 15 to 35°C
Storage: -20 to 60°CDimensions: 2,620 X 934 X 1,332 mm (W x D x H)Warranty: 1 year limited warrantyWeight: 290kg (wihout ink)Bundled Items: Substrate Support System and Ink Supply System (C12C934971)
Initial Ink Pack Set 10 (C12C934741) x 2
Initial Ink Pack Set (C12C934991) x 1

Power:


Power Consumption: Operating: Approx. 600W
Ready: Approx. 380W
Sleep: Approx. 14W
Power Off: Approx. 1.0WPower Requirements: AC100-120V AC200-240V 50/60Hz

Paper Handling:


Media Width: 300mm (11.8") to 1625mm (64")Paper Feed Method: Rear roll feed (2"/3" core with max 250mm diameter and up to 45kg); Auto take-up reelPrint Margin: Side Margin: 5mm both sides, 10mm with media holding guides
Max. 1615.6mmMedia Thickness: Up to 1 mm

Control Panel:


Colour & Size: 2.7" Colour LCD

Memory:


Main: 512MBNetwork: 128MB

Software:


Standard (Bundled): (Windows only): CD installer, Epson communication Driver, Epson manual Launcher, Operators Guide, General Information, Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, EpsonNet Print, Software Updater, DVD(Epson Edge Print bundle SKU only) Epson Edge Print, Epson Control Dashboard, Epson Communication DriverOption (Web Download): (Mac and Windows): CD installer, Epson communication Driver, Epson manual Launcher, Operators Guide, General Information, Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, EpsonNet Print, Software Updater, LFP Accounting Tool

Printer Width:


Printer Width: 64"

Recommended Operating Temperature & Humidity:


Recommended Operating Temperature & Humidity: 15 - 35°C, 20 - 80% RH (non-condensing)

Connectivity:


Interface: Hi-Speed USB, 100BASE-TX / 1000BASE-T
