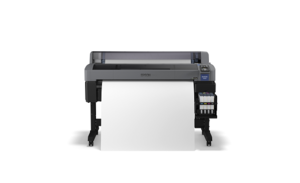

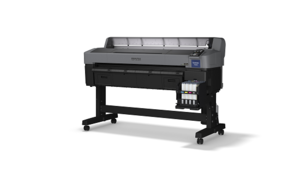

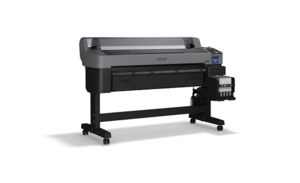

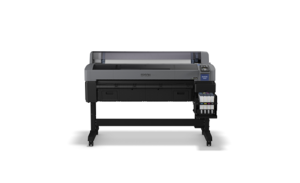

Epson SureColor SC-F6330 Dye Sublimation Printer

Product Models displayed on this website may be available in certain regions only.

DESIGNED FOR PERFORMANCE, PURPOSED FOR AFFORDABILITY.

Sleeker, faster, higher performance. Epson SureColor F-Series printers include some of the latest advancements in printing technology to deliver amazing performance at an affordable running costs. With a fresh, stylish look in black, the SC-F6330 turns any office into a modern space.

  • 44-inch Dye-Sublimation Printer
  • Designed with extreme reliability for sheet-based production
  • Large 1.5L capacity ink tank per colour
  • High-performance dye-sublimation transfer printer
  • Ideal for short-volume custom clothing, soft signage, merchandise and hard surface work





Click here to register for Epson Cloud Solution PORT.

Remarkable Productivity
Deliver outstanding print quality, fast speeds and high reliability, with minimal downtime through Epson’s advanced PrecisionCore printhead.

Affordable Prints with Peace of Mind
Cost-effective 1.1L/1L*** ink packs and new high-density black ink ensure lower ink usage and overall printing costs.

Consistently Vibrant Quality
UltraChrome DS ink is specially formulated to produce vibrant colours, intense blacks, sharp contours and smooth gradations.

Designed for Convenience
With convenience spelled into both the printer’s standard bundled Epson Edge Print software as well as its intuitive design, you can easily manage print layouts and colours digitally as well as access all major functions and features like the ink tank system, control panel and take-up reel control.

Printing:


Printing Technology: PrecisionCore™ TFP® PrintheadNozzle Configuration: 360 nozzles x 4 channels x 1 headMaximum Print Resolution: 720 x 1440 dpiPrint Speed: (Print Mode: Draft / Resolution: 360 x 720 / Pass: 1) 63.4 m2/h
(Print Mode: High Speed / Resolution: 720 x 720 / Pass: 2) 30.4 m2/h
(Print Mode: Production / Resolution: 720 x 720 / Pass: 3) 22.7 m2/h
(Print Mode: Production / Resolution: 720 x 720 / Pass: 4) 15.8 m2/h
(Print Mode: High Quality / Resolution: 720 x 720 / Pass: 6) 11.2 m2/h
(Print Mode: High Quality / Resolution: 720 x 1440 / Pass: 8) 8.3 m2/h

Ink:


Ink Type: Epson UltraChromeTM DS dye-sublimation inkInk Capacity: Pack - 1100ml
Tank - 1600mlInk Configuration: 4 colours - Cyan, Magenta, Yellow, High-Density Black

General:


Memory: 512 MB (Main) + 128 MB (Network)Bundled Items: Initial Ink Pack Set (C12C934741)
Ink Supply System and Waste Ink Bottle Kit (C12C932491)
Auto Take Up Reel (C12C934571)
Roll Adapter (C12C811391) Acoustic Noise Level: Sound Pressure Level: Approx. 54 dB(A)
Sound Power Level: Approx. 7.4 B(A)Control Panel: 2.7" Colour LCDPrinter Width: 44"Options: Auto Cutter Blade (C13S902006)
Maintenance Kit (C13S210042)
Waste Ink Bottle (C13T724000)
Roll Media Adapter (C12C811391)

Paper Handling:


Media Width: 300 to 1117.6mmMedia Thickness: Up to 1mm (over 75 gsm)Paper Feed Method: Rear roll feed (2” / 3” core with max 150mm diameter); Auto take-up reel support over 914.4 mm (36")Print Margin: Max. 1112mm
Side Margin: 3mm both sides

Recommended System Requirements:


Win PC System Requirements: Windows 10/8.1/8/7 (32/64bit) or late
CPU: Core 2 Duo 3.05GHz
Memory: Memory more than 2GB
HDD: Free space more than 50GBMac System Requirements: Mac OS X (10.6.8) or later
CPU: Core 2 Duo 2.0GHz
Memory: Memory more than 1GB
HDD: Free space more than 500MB

Dimensions and Weight:


Weight: Approx. 94 Kg (without ink)Dimensions: Printing: 1,608 x 914 x 1,128 mm (W x D x H)
Stowed: 1,608 x 914 x 1,128 mm (W x D x H)

Electrical Specifications:


Power Consumption: Operating: Approx. 65W
Sleep: Approx. 3.0W
Power Off (standby): Approx. 0.4WSupply Voltage: AC 100-240V 50/60Hz

Utility Software:


Utility Software (Bundled in CD): Windows only: CD, CD Installer, Epson Communication Driver, Epson Manual Launcher, Operators Guide, General Information, Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, EpsonNet Print, Software Updater, DVD (Epson Edge Print bundle SKU only) Epson Edge Print, Epson Control Dashboard, Epson Communication DriverUtility Software (Web delivery): Windows and Mac: CD Installer, Epson Communication Driver, Epson Manual Launcher, Operators Guide, General Information, Epson Control Dashboard, EpsonNet Setup, EpsonNet Config, EpsonNet Print, Software Updater, LFP Accounting Tool

Recommended Operating Temperature & Humidity:


Temperature: Operating: 15°C to 35°C
Storage: -20°C to 60°CHumidity: Operating: 20 to 80% (no condensation)
Storage: 5 to 85% (no condensation)

Connectivity:


Interfaces: Hi-Speed USB, 100BASE-TX/1000BASE-TPrinter Language: ESC/P raster

Notes:

1 The SureColor F-Series printers are designed to be used exclusively with UltraChrome DS inks and not with any other brands of cartridges or inks. Using Epson genuine ink is important for reliable performance and high image quality.

2 Oeko-Tex 100 (Product Class 1) - The four color Epson dye sublimation inks used in the Epson SureColor F6200 printer, when applied to polyester fabrics, pass the requirements of Oeko-Tex Standard 100 for human ecological requirements of Class 1 products for adults, children, and babies up to 36 months. Oeko-Tex Standard 100 specifies testing criteria for the presence of harmful substances within a textile product. The standard belongs to the International Association for Research and Testing in the field of Textile Ecology (Oeko-Tex)
