For Work Printers Large Format Epson SureColor SC-S80670L

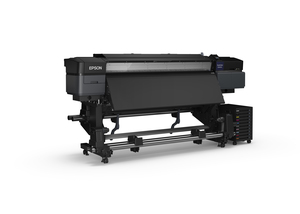

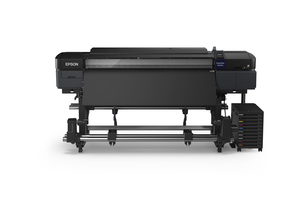

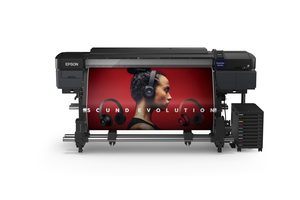

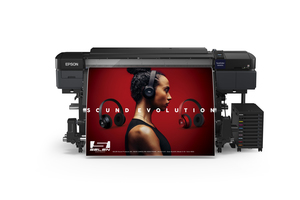

Epson SureColor SC-S80670L Eco-Solvent Signage Printer

Print with confidence even with the most demanding jobs

The Epson SureColorTM SC-S80670L offers the widest colour gamut to meet most demanding jobs for a wide variety of indoor and commercial applications with the 10-colour UltraChromeTM Epson UltraChrome GS3 - with red ink and option of white or metallic silver colours.

Wide colour gamut to meet most demanding jobs with 10-colour configuration.

  • Ink Bulk System for higher print volume run
  • Wide colour gamut to meet most demanding jobs with 10-colour configuration
  • Up to 64-inch width and 1.0 mm thickness media
  • Epson UltraChromeTM GS3 ink Technology with Red - Greenguard Gold certified for low chemical emissions
  • 2-years limited warranty





Click here to register for Epson Cloud Solution PORT.

UltraChrome GS3 Ink
Using eco-solvent ink from Epson to bring a wide gamut of colours that comes with a higher image quality. The result is an outstanding gloss level and colour vibrancy that will astound. The ink set has also been improved to allow a lowered consumption and also a faster drying time.

Inks Made Safe for You and the Environment
Using a safe pigment formula which is free from nickel and fluorine compounds while producing low chemical emissions, the UltraChrome GS3 eco-solvent ink is Greenguard Gold Certified.

Less Waste, More Eco-Friendly
Using 1L ink packs, the printers produce lesser waste than traditional ink cartridges. It also results in an 80% reduction in weight and takes up 90% less space*.

Reduced User Intervention
The SC-S80670L enable up to 12-hours** of continuous unattended printing with a 50%*** less need for replacements therefore enabling operators to attend to other matters.

PrecisionDot Mode
PrecisionDot mode delivers flawless output across all mediums even at fast print speeds. Epson's image processing technology includes three components: Halftone module, Look-Up-Table and Microweaving.

Higher Quality, Faster Output
The Epson PrecisionCore TFP printhead produces exceptional image quality thanks to its 360dpi printhead nozzle configuration, producing a maximum resolution of up to 1440 x 1440 dpi1.

Epson Wide CMYK Profile
Epson Wide CMYK Profile is an ICC profile developed by Epson to maximise the colour gamut of the printer, harnessing both quality of Epson's UltraChromeTM GS3 inks (with Red) and Precision Dot Technology.

Software Solutions
Epson Control Dashboard, Epson Edge Print (RIP) and LFP Accounting Tool sets any business on track to maximise efficiency with enhanced control over your prints.

Bulk Ink System
The Epson's bulk ink solution comes with 1.5-litre ink pouches that reduce downtime. It minimises the user intervention with automated head-cleaning, for longer uninterrupted print runs, which brings greater convenience and lower ink costs.

Printing:


Printing Technology: Variable-Sized Droplet TechnologyPrint Head: Dual Advanced PrecisionCore TFP Print HeadsNozzle Configuration: 360 nozzles x 1 channel x 2 heads x 10 coloursMaximum Print Resolution: 1440 x 1440 dpiMinimum Ink Droplet Size: 4.2 plPrint Speed: Colour (1 Layer)
Max Speed - 1 Pass: Up to 95.1 m2/h (360 x 720 dpi)
High Speed - 2 pass (Billboard): Up to 52.3 m2/h (720 x 720 dpi)
Production 1 - 4 pass: Up to 26.8 m2/h (720 x 720 dpi)
Production 2 - 6 pass: Up to 18.2 m2/h (720 x 720 dpi)
Colour, Colour + White (1 Layer)
High Quality - 8 pass: Up to 13.2 m2/h (720 x 720 dpi)
Max Quality 1 - 12 pass: Up to 8.8 m2/h (720 x 1440 dpi)
Max Quality 2 - 16 pass: Up to 6.8 m2/h (720 x 1440 dpi)
Max Quality 3 - 30 pass: Up to 3.7 m2/h (720x 1440 dpi)
Max Quality 4 - 48 pass: Up to 2.4m2/h (1440 x 1440 dpi)
Colour + Metallic Silver(1 Layer)
Production - 20 pass: Up to 4.2 m2/h (760 x 1440 dpi)
High Quality - 36 pass: Up to 2.3m2/h (1440 x 1440 dpi)
Colour + White (2 Layers)
Speed - 18 pass: Up to 6.4 m2/h (720 x 720 dpi)
Production - 32 pass: Up to 3.5 m2/h (720 x 1440 dpi)
High Quality - 48 pass: Up to 2.4 m2/h (1440 x 1440 dpi)
Colour + Metallic Silver (2 Layers)
Production - 40 pass: Up to 1.9 m2/h (720 x 720 dpi)
High Quality - 72 pass: Up to 1.1 m2/h (1440 x 1440 dpi)
Colour + White (3 Layers)
Speed - 27 pass: Up to 3.2 m2/h (720 x 720 dpi)
Production - 48 pass: Up to 1.7 m2/h (760 x 1440 dpi)
High Quality - 72 pass: Up to 1.1 m2/h (1440 x 1440 dpi)Maximum Printable Area: Max printing width: 1616 mm, Side Margin: 5 mm both sides, 10 mm with media holding plates

Ink:


Ink Type: Epson UltraChrome™ GS3 Ink Technology with RedInk Capacity: 1500 ml (except Metallic Silver 500ml)Ink Configuration: 10 Colours – Cyan, Magenta, Yelow, Black, Light Cyan, Light Magenta, Light Black, Orange, Red, White/Metallic Silver

Printable Area and Accuracy:


Maximum Paper Width: 1626 mm (64")Minimum Paper Width: 300 mm (11.8")

Roll Media Handling:


Media Width: 300 to 1626 mmMedia Thickness: Up to 1 mmRoll Outer Diameter: Up to 250mmReel Outer Diameter: Up to 200 mmRoll Weight: Up to 45 KgLeft / Right Margins: 5 mm each side (10 mm when using Media Holding Plates)

General:


Operating Systems: Windows Vista/7/8/8.1/10 (64bit) or later, Mac OS 10.6 or laterDimensions: Printer Storage: 2,766 x 880 x 1,338 mm (W x D x H)
Ink Bulk System: 423 x 650 x 548 mm (W x D x H)Warranty: 2 years limited warrantyOperating Temperature: 15 to 35 °C (20 to 32°C recommended)Operating Humidity: 20 to 80% RH (40 to 60% recommended)Weight: Printer: 328 kg
Ink Bulk System: 55kgMemory: 2 GB main + 128MB networkBundled Items: Bulk Ink Solution 2 (C12C934631)
Substrate Support System (C12C932361)
Starter Kit (1 set of inks) (C13T45P100E2)

Printer Details:


Printer Language: Standard: ESC/P rasterControl Panel: 2.7" Colour LCDInterfaces: Hi-Speed USB, 100BASE-TX / 1000BASE-T

Power:


Power Consumption: Printing: approximately 650 W (ISO/IEC24712)
Ready mode: approximately 400 W
Sleep mode: approximately 14 W
Power off mode: 1.5 WRequirement: AC 100-120V or 200-240V 50/60HzRated Current: 10A (AC100-120V) 5A (AC200-240V)Power Supply: Direct from printer

Paper Handling:


Paper Handling: Rear roll feed (2 " / 3 " core with max 250 mm diameter and up to 45 kg); Auto take-up reelAuto Take Up: StandardSupported Media Sizes: Roll Paper Width: 11.8" (300mm) to 64" (1626mm)Heaters: Pre- and Platen- Heater (30 to 50 °C); After-Heater (30 to 55 °C)

Printer Width:


Printer Width: 64"

Utility Software:


Utility Software (Bundled in CD): Windows: CD Installer, Communication Driver, Epson Manuals Launcher, Operators Guides, General Information, Epson Edge Dashboard, EpsonNet Config, EpsonNet Setup, EpsonNet Print, Epson Software Updater Mac: Epson Manuals Launcher, EpsonNet Config, Epson Software updaterUtility Software (Web delivery): Windows: CD Installer, Communication Driver, Epson Manuals launcher, Operators Guide, General Information, Epson Edge Dashboard, EpsonNet Config, EpsonNet Setup, EpsonNet Print, Epson Software Updater Mac: Epson Manuals Launcher, EpsonNet Config, Epson Software Updater

Notes:

*Data is based on Epson's calculation. Actual space reduction ratio could be different from the data above.

**Based on internal simulation of solid colour printing. Actual result could differ based on printing conditions.

***Based on internal testing. Actual result could differ based on printing conditions.

1 Depends on RIP software.
